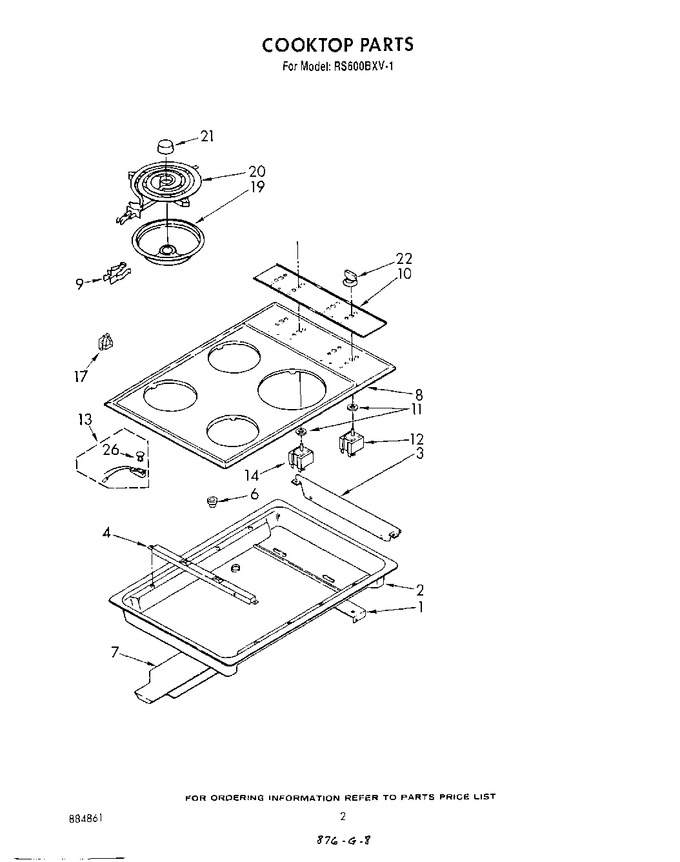

02 - Cooktop
03 - Oven Door
04 - Control Panel , Lit/optional
05 - Oven
06 - Wiring Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 310718 | Support, Burner Box (2) |
|
- | |||||
| 1 | WP488729 | Screw (4) (Replaces: 313638) |
|
Immediately | $ 7.45 | ||||
| 2 | 311019 | Box, Burner |
|
- | |||||
| 3 | 310716 | Shield, Switch |
|
- | |||||
| 3 | WP488729 | Screw (2) (Replaces: 313638) |
|
Immediately | $ 7.45 | ||||
| 4 | 310717 | Support, Cooktop |
|
- | |||||
| 4 | WP488729 | Screw (4) (Replaces: 313638) |
|
Immediately | $ 7.45 | ||||
| 6 | 258109 | Bushing |
|
- | |||||
| 7 | WP488729 | Screw (Replaces: 313638) |
|
Immediately | $ 7.45 | ||||
| 7 | 312318 | Screw, |
|
- | |||||
| 7 | 3147565 | Cover, Top Rear |
|
- | |||||
| 8 | 3148038 | Cooktop, Brushed Chrome |
|
- | |||||
| 8 | 166681 | Screw |
|
- | |||||
| 9 | 330031 | Receptacle (4) (Replaces: 3147829) |
|
Immediately | $ 17.93 | ||||
| 9 | WP313808 | Screw, (Replaces: 313808) |
|
$ 7.47 | |||||
| 10 | 3148705 | Panel, Control |
|
- | |||||
| 11 | 309839 | Seal, Switch |
|
- | |||||
| 12 | 155023 | Screw (6) |
|
Immediately | $ 7.91 | ||||
| 12 | W10900107 | Switch, Infinite (3) (Replaces: 3148948) |
|
Immediately | $ 51.87 | ||||
| 13 | 313462 | Indicator, Light (incudes No. 26) |
|
- | |||||
| 14 | 3148947 | Switch, Infinite |
|
- | |||||
| 14 | 155023 | Screw (2) |
|
Immediately | $ 7.91 | ||||
| 16 | 255673 | Connector, Wire |
|
- | |||||
| 17 | 814103 | Clip, Hold Down (4) (Replaces: 3148790) |
|
$ 9.47 | |||||
| 18 | 330031 | Clip, Mtg. (4) (Replaces: 3147829) |
|
Immediately | $ 17.93 | ||||
| 19 | WPW10196406 | Reflector Pan 6`` (2) (Replaces: 3150246) |
|
Immediately | $ 12.05 | ||||
| 19 | W10196405RW | Reflector Pan (8`` (2)) (Replaces: 3150247) |
|
Immediately | $ 19.64 | ||||
| 20 | WP660532 | Unit, Surface 6`` (Replaces: 660528) |
|
Immediately | $ 45.10 | ||||
| 20 | WP660532 | Unit, Surface 6`` (alt.) (Replaces: 313968) |
|
Immediately | $ 45.10 | ||||
| 20 | WP660532 | Unit, Surface 6`` (alt.) (Replaces: 309191) |
|
Immediately | $ 45.10 | ||||
| 21 | 309195 | Medallion, Unit |
|
- | |||||
| 22 | 3148161 | Knob, Control (4) |
|
- | |||||
| 26 | 313602 | Lens, Light |
|
- | |||||
| WP660533 | (alt.) (Replaces: 309185) |
|
Immediately | $ 40.21 | |||||
| WP660533 | Unit, Surface 8`` (Replaces: 660530) |
|
Immediately | $ 40.21 | |||||
| LIT884861 | Repair Parts List |
|
- | ||||||
| LIT313358 | Cooking Guide |
|
- | ||||||
| LIT3148321 | Use & Care Guide |
|
- | ||||||
| LIT3147390 | Instructions, Installation |
|
- | ||||||
| WP660533 | (alt.) (includes Illus. 21) (Replaces: 313966) |
|
Immediately | $ 40.21 |
