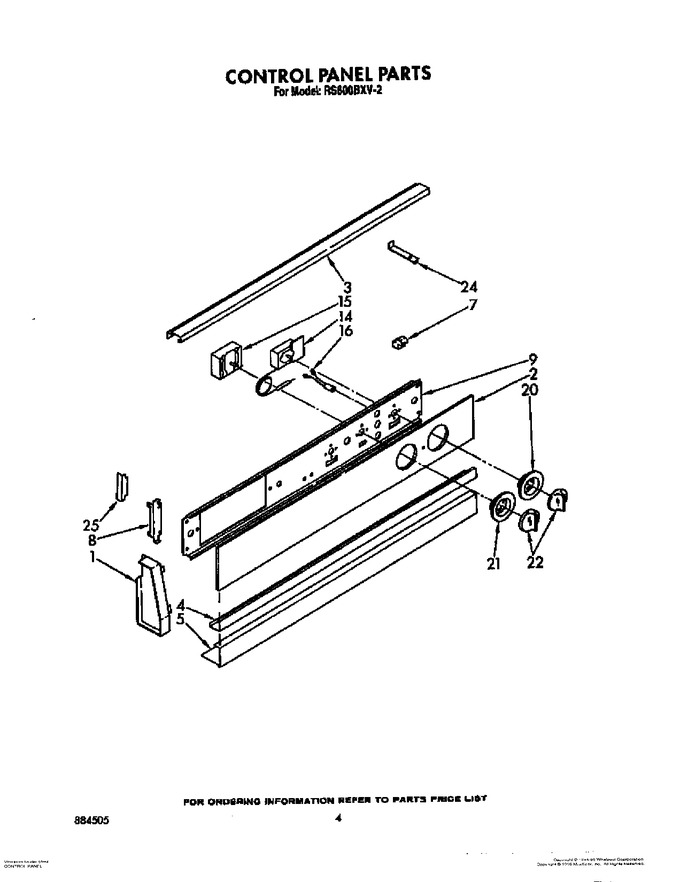

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148444		End Cap (r.h.)		Appelez-nous	-
1	308504		End Cap (screw (2))		Appelez-nous	-
1	3148445		End Cap (l.h.)		Appelez-nous	-
1	342043		End Cap (screw (2))		Appelez-nous	-
2	3148638		Control Panel, Glass		Appelez-nous	-
3	3148616		Rail, Top		Appelez-nous	-
4	3148626		Trim, Center		Appelez-nous	-
5	WP965173		Screw, 8a X 3/8 (3)   (Replaces: 246132)			Immediately	$ 10.68
5	342043		Screw (4)		Appelez-nous	-
5	98520		Screw (5)		Appelez-nous	-
5	3148629		Trim, Bottom		Appelez-nous	-
7	3149882		Retainer, Glass (4)		Appelez-nous	-
8	98520		Screw (4)		Appelez-nous	-
8	3148634		Bracket, Control Panel (2)		Appelez-nous	-
9	313314		Bracket, Control		Appelez-nous	-
9	98520		Screw		Appelez-nous	-
9	313381		Clip		Appelez-nous	-
14	310861		Thermostat, Oven (alt.)		Appelez-nous	-
14	660564		Thermostat, Oven		Appelez-nous	-
14	311495		Thermostat, Oven (alt.)		Appelez-nous	-
15	310932		Switch, Selector (4 Position)		Appelez-nous	-
15	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
16	311802		Light, Indicator (250 V)		Appelez-nous	-
20	311065		Escutcheon, Thermostat		Appelez-nous	-
21	311070		Escutcheon, Selector		Appelez-nous	-
21	254225		Screw, 8 X 1/4 (2)		Appelez-nous	-
22	WP3150371		Knob, Control (2)   (Replaces: 3150371)				$ 20.38
24	312752		Support, Top Rail		Appelez-nous	-
25	241430		Foil, Aluminum Oven (18`` X 25`)				$ 20.65
25	350956		Paint, Spray 13 Oz. (almond)				$ 48.61
25	72017		Paint, Touch-up 1/2 Oz. (white)			Immediately	$ 11.07
25	WP72107		Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107)				$ 16.93
25	261888		New Avocado		Appelez-nous	-
25	261886		Coffee		Appelez-nous	-
25	261890		Harvest Gold		Appelez-nous	-
25	285006		Paint, Spray 13 Oz. (black)				$ 53.90
25	350942		Primer (white)   (Replaces: 206922)				$ 84.73
25	206925		Leveler (thinner) (2oz.)		Appelez-nous	-
25	799351		Thinner (1 Gal.)		Appelez-nous	-
25	799832		Kit. Porcelain Repair (white)		Appelez-nous	-
25	261810		Touch-up, Oven (1/2 Pt.)		Appelez-nous	-
25	261582		Grease		Appelez-nous	-
25	261880		Rotisserie Kit		Appelez-nous	-
25	242820		Wire (14 Ga. 150 C Black)		Appelez-nous	-
25	3149900		Trim, End Cap		Appelez-nous	-
25	307748		Screw		Appelez-nous	-
25	242828		Wire (12 Ga. 150 C Black)		Appelez-nous	-
25	242821		Wire (14 Ga. 150 C Blue)		Appelez-nous	-
25	242822		Wire (14 Ga. 150 C Brown)		Appelez-nous	-
25	242830		Wire (14 Ga. 200 C Brown)		Appelez-nous	-
25	242823		Wire (14 Ga. 150 C Green)		Appelez-nous	-
25	242824		Wire (14 Ga. 150 C Orange)		Appelez-nous	-
25	242829		Wire, Red 12 Ga. 150~c		Appelez-nous	-
25	242825		Wire (14 Ga. 150 C Red)		Appelez-nous	-
25	242831		Wire (14 Ga. 200 C Red)				$ 342.23
25	242826		Wire, White 14 Ga. 150~c		Appelez-nous	-
25	242827		Wire (14 Ga. 150 C Yellow)		Appelez-nous	-
25	242832		Wire, Yellow 14 Ga. 200~c		Appelez-nous	-
25	DD81-03471A		Paint, Touch-up 1/2 Oz. (avocado)   (Replaces: 72109)				$ 54.25
25	DD81-03944A		Paint, Touch-up 1/2 Oz. (coffee)   (Replaces: 72108)				$ 98.33
25	DD81-03523A		Paint, Touch-up 1/2 Oz. (harvest Gold)   (Replaces: 72110)				$ 124.07
25	350930		Paint, Pressurized Spray (12 Oz.) White			Immediately	$ 36.11
	261887		Xcoffee (uncut)		Appelez-nous	-
	487384		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
	511873		Paint, Touch-up 1/2 Oz. (white Porcelain)				$ 46.58
	799344		Paint, Bulk (1 Qt.) (white) (uncut)				$ 237.46
	261891		Harvest Gold (uncut)		Appelez-nous	-
	978883		Almond (uncut)		Appelez-nous	-
	261889		Xnew Avocado (uncut)		Appelez-nous	-
