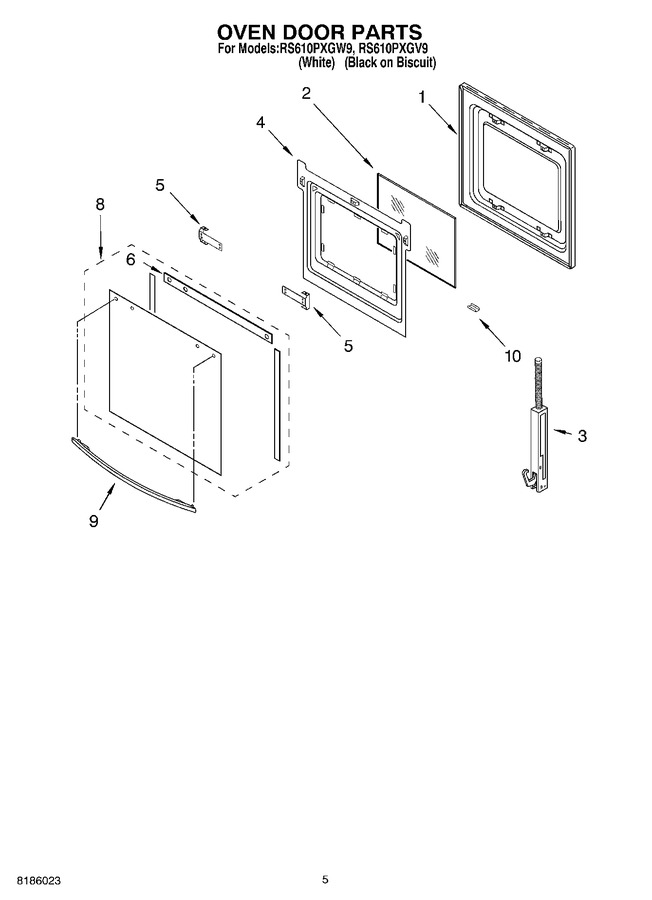

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP9759413		Door Liner   (Replaces: 4455618)				$ 333.41
2	WP4449259		Glass, Inner   (Replaces: 4449259)				$ 192.01
3	WP4449743		Hinge, Door (screw (4))   (Replaces: 4449743)				$ 6.80
3	8300566		Hinge, Door (l.side)		Appelez-nous	-
3	8300565		Hinge, Door (r.side)		Appelez-nous	-
4	WP4449809		Screw (4)   (Replaces: 4449809)			Immediately	$ 6.80
4	8300778		Retainer, Glass		Appelez-nous	-
5	WP4449743		Screw (2)   (Replaces: 4449743)				$ 6.80
5	4450813		Bracket, Handle				$ 24.20
5	W10276642		Screw (4)   (Replaces: 4451040)				$ 5.77
6	8300820		Seal, Top		Appelez-nous	-
8	8300903		Assy, Door Glass		Appelez-nous	-
9	4448854		Handle, Door				$ 74.07
10	WP4449743		Screw (2)   (Replaces: 4449743)				$ 6.80
10	4450863		Retainer, Glass		Appelez-nous	-
