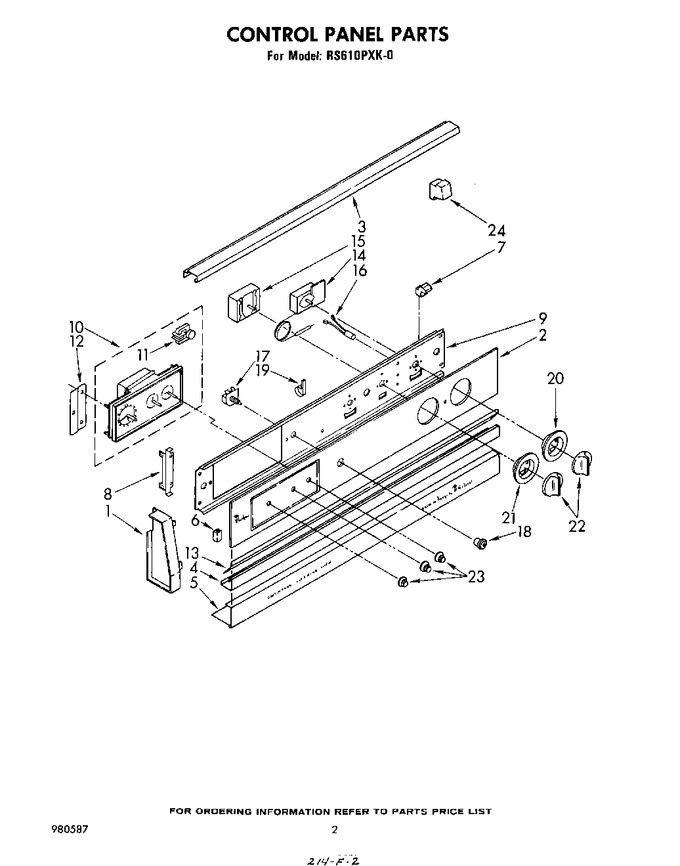

02 - Control Panel


03 - Oven


04 - Oven Door , Literature And Optional


05 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	310827		End Cap (r.h.)		Appelez-nous	-
1	310826		End Cap (l.h.)		Appelez-nous	-
1	308504		End Cap (screw (2))		Appelez-nous	-
1	342043		End Cap (screw (2))		Appelez-nous	-
2	311094		Control Panel, Glass		Appelez-nous	-
3	310819		Rail, Top		Appelez-nous	-
4	311195		Trim, Center		Appelez-nous	-
5	342043		Screw (4)		Appelez-nous	-
5	311197		Rail, Bottom		Appelez-nous	-
5	WP965173		Screw, 8a X 3/8 (3)   (Replaces: 246132)			Immediately	$ 10.68
6	310842		Channel, Rubber (2)		Appelez-nous	-
7	310823		Retainer, Glass (4)		Appelez-nous	-
8	310720		Bracket, Control Panel (2)		Appelez-nous	-
8	98520		Screw (4)		Appelez-nous	-
9	310727		Bracket, Control		Appelez-nous	-
10	308846		Timer (palnut, 10/32 (4))		Appelez-nous	-
10	310940		Timer (alternate)		Appelez-nous	-
10	311262		Timer (alternate)		Appelez-nous	-
11	309822		Motor, Timer		Appelez-nous	-
12	WP965173		Screw, 8a X 3/8 (2)   (Replaces: 246132)			Immediately	$ 10.68
12	310943		Bracket, Timer (2)		Appelez-nous	-
13	255893		Seal, Backguard		Appelez-nous	-
14	310861		Thermostat, Oven (alternate)		Appelez-nous	-
14	311495		Thermostat, Oven (alternate)		Appelez-nous	-
14	487384		Thermostat, Oven (screw, 6-32 X 1/4 (2))		Appelez-nous	-
15	310866		Switch, Selector (4 Position)		Appelez-nous	-
15	155023		Screw, 8-32 X 1/4 (2)			Immediately	$ 7.91
16	308753		Light, Indicator (250 V)		Appelez-nous	-
17	308829		Switch, Oven Light		Appelez-nous	-
17	255912		Nut, 3/8 X 27 Hex		Appelez-nous	-
17	WP965173		Screw, 8a X 3/8 (4)   (Replaces: 246132)			Immediately	$ 10.68
18	308784		Bezel, Switch		Appelez-nous	-
19	WP308605		Strain, Relief   (Replaces: 308605)				$ 10.58
19	WP965173		Screw, 8a X 3/8   (Replaces: 246132)			Immediately	$ 10.68
19	308609		Strain, Relief		Appelez-nous	-
19	166681		Screw, 10-32 X 5/16		Appelez-nous	-
20	311065		Escutcheon, Thermostat		Appelez-nous	-
21	254225		Screw, 8 X 1/4 (2)		Appelez-nous	-
21	WP311069		Escutcheon, Selector   (Replaces: 311069)				$ 52.73
22	WP3150371		Knob, Control (2)   (Replaces: 310834)				$ 20.38
23	309553		Knob, Timer (3)		Appelez-nous	-
24	311450		Trim, Support (2)		Appelez-nous	-
