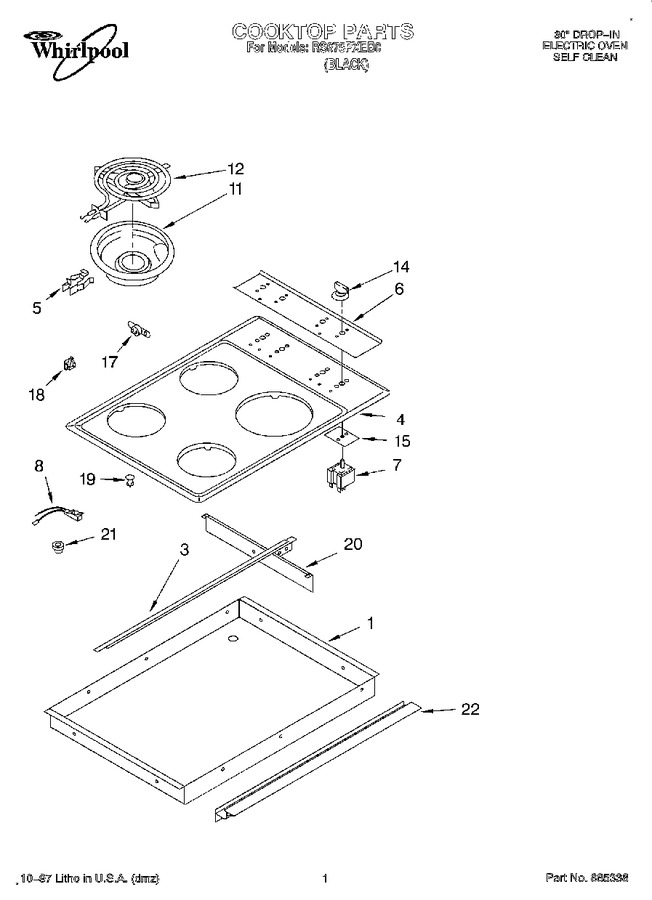

01 - Cooktop


02 - Oven Door


03 - Oven


04 - Internal Oven


05 - Control Panel, Top Venting, Literature


06 - Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4450883		Burner Box		Appelez-nous	-
3	4454836		Bracket, Mounting		Appelez-nous	-
3	4159456		Screw (6)		Appelez-nous	-
4	3183618		Cooktop		Appelez-nous	-
5	330031		Clip, Mtg. (4)   (Replaces: 312606)			Immediately	$ 17.93
6	4450908		Panel, Control		Appelez-nous	-
7	4454534		Switch, Infinite (use W/8`` Surface Unit)		Appelez-nous	-
7	4454532		Switch, Infinite (use W/6`` Surface Unit)		Appelez-nous	-
8	3187778		Light, Indicator		Appelez-nous	-
11	WPW10196406		Pan, Surface (6`` Pan)   (Replaces: 3150246)			Immediately	$ 12.05
11	W10196405RW		Pan, Surface (8`` Pan)   (Replaces: 3150247)			Immediately	$ 19.64
12	WP660532		Unit, Surface (2) 6``   (Replaces: 660532)			Immediately	$ 45.10
12	WP660533		Unit, Surface (2) 8``   (Replaces: 660533)			Immediately	$ 40.21
14	3183120		Knob, Control		Appelez-nous	-
15	3183956		Seal, Switch Shaft (4)				$ 43.89
17	313806		Screw (2)		Appelez-nous	-
17	WP3188286		Thermostat   (Replaces: 3188286)				$ 69.44
18	814103		Clip, Retainer (4)   (Replaces: 3148790)				$ 9.47
19	313602		Light Lens		Appelez-nous	-
20	4454837		Shield, Heat		Appelez-nous	-
21	4159035		Bushing		Appelez-nous	-
22	4451005		Trim, Extension		Appelez-nous	-
