SELECT A DIAGRAM

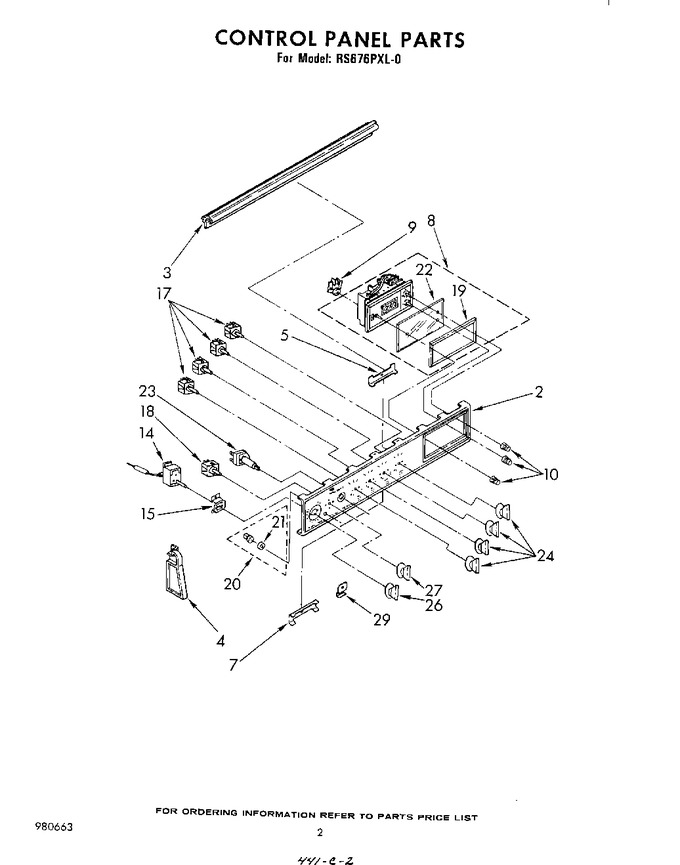

02 - Control Panel


03 - Oven


04 - Cooktop


05 - Interior Oven


06 - Door


07 - Grill Kit Rck891


08 - Surface Unit Kit Rck886-1


09 - Surface Unit


10 - Griddle Kit Rck 884 , Cutting Boar


11 - Surface Unit Kit Rck 889-1


12 - Rotisserie Kit Rck892


13 - Smooth Top Rck 893 , Literature And


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	877525		Panel, Control		Appelez-nous	-
3	868820		Rail, Control Panel (bottom)		Appelez-nous	-
3	868819		Rail, Control Panel (top)		Appelez-nous	-
4	868852		End Cap L.h.		Appelez-nous	-
4	595135		Screw, 8-32 X 3/8 (4)		Appelez-nous	-
4	868851		End Cap R.h.		Appelez-nous	-
5	868823		Bracket, Control Panel (upper)		Appelez-nous	-
7	868824		Bracket, Control Panel (lower)		Appelez-nous	-
7	595135		Screw, 8-32 X 3/8 (2)		Appelez-nous	-
8	877526		Timer Digital (includes Illus. 9 & 10)		Appelez-nous	-
9	866403		Motor, Timer		Appelez-nous	-
10	241383		Knob, Timer (3)		Appelez-nous	-
14	877527		Thermostat		Appelez-nous	-
15	868827		Bracket, Thermostat Mounting		Appelez-nous	-
15	486525		Screw, 8-32 X 3/16 (4)		Appelez-nous	-
17	W10900107		Switch Infinite (rob) (4)   (Replaces: 877528)			Immediately	$ 51.87
17	486525		Screw, 8-32 X 3/16 (8)		Appelez-nous	-
18	486525		Screw, 8-32 X 3/16 (2)		Appelez-nous	-
18	877529		Switch, Oven Selector		Appelez-nous	-
19	834764		Bezel, Clock		Appelez-nous	-
20	868106		Light Indicator (oven)		Appelez-nous	-
21	868107		Lens, Signal (red)		Appelez-nous	-
22	868843		Glass, Clock		Appelez-nous	-
23	241266		Nut, 3/8-27		Appelez-nous	-
23	98754		Nut, 3/8-27		Appelez-nous	-
23	866148		Switch, Oven Light		Appelez-nous	-
24	868431		Knob, Surface Unit (4)		Appelez-nous	-
26	868997		Knob, Thermostat		Appelez-nous	-
27	868998		Knob, Selector		Appelez-nous	-
29	681151		Screw, 10-24 X 1/2		Appelez-nous	-
29	877535		Bracket, Control Panel		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
