View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

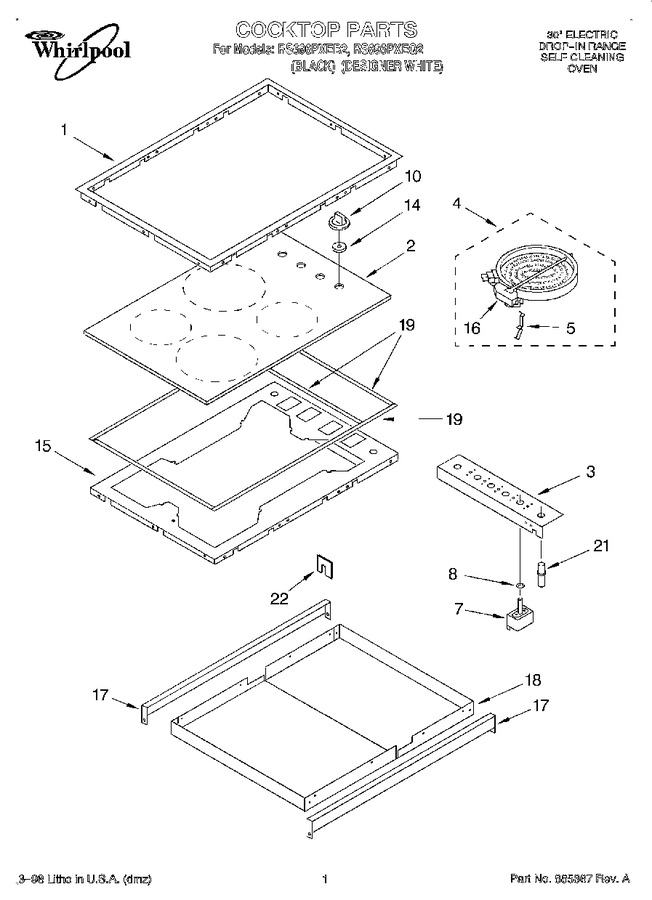

01 - Cooktop
02 - Oven
03 - Oven Door
04 - Internal Oven
05 - Control Panel
06 - Top Venting, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4449978 | Trim Ring, Cooktop (black) |
|
- | |||||
| 1 | 4449979 | Trim Ring, Cooktop (white) |
|
- | |||||
| 1 | 4168863 | Trim Ring, Cooktop (screw (10)) |
|
- | |||||
| 2 | 4450278 | Cooktop, Glass (white) |
|
- | |||||
| 2 | 4450276 | Cooktop, Glass (black) |
|
- | |||||
| 3 | 3190334 | Bracket, Switch Mounting |
|
- | |||||
| 3 | 3148443 | Screw (2) |
|
- | |||||
| 4 | 3189897 | Element, Surface (2400w Left Front) |
|
- | |||||
| 4 | 3189894 | Element, Surface (1400w Left Rear) |
|
- | |||||
| 4 | 3189895 | Element, Surface (1700w Right Front) |
|
- | |||||
| 4 | 3189896 | Element, Surface (2100w Right Rear) |
|
- | |||||
| 5 | 3189165 | Spring, Locator (8) |
|
- | |||||
| 5 | WP486754 | Screw (8) (Replaces: 246119) |
|
$ 7.21 | |||||
| 7 | 4454535 | Switch, Infinite (use W/1400w Left Rear Burner) |
|
- | |||||
| 7 | 4454536 | Switch, Infinite (use W/2100w Right Rear Burner) |
|
- | |||||
| 7 | 4454537 | Switch, Infinite (use W/2400w Left Front Burner) |
|
- | |||||
| 7 | WP486579 | Switch, Infinite (screw (2 Each)) (Replaces: 311865) |
|
$ 7.10 | |||||
| 8 | WP486579 | Screw (Replaces: 311865) |
|
$ 7.10 | |||||
| 8 | 309839 | Seal, Switch Cover |
|
- | |||||
| 10 | 3183120 | Knob, Control (4) (black) |
|
- | |||||
| 10 | 3183119 | Knob, Control (4) (white) |
|
- | |||||
| 14 | 3182435 | Seal, Switch (4) |
|
- | |||||
| 15 | 4449981 | Plate, Backer |
|
- | |||||
| 16 | 3190253 | Limiter, Temperature (use W/3189894 Element) |
|
- | |||||
| 16 | 3190250 | Limiter, Temperature (use W/3189895 Element) |
|
- | |||||
| 16 | 3190251 | Limiter, Temperature (use W/3189897 Element) |
|
- | |||||
| 16 | 3190252 | Limiter, Temperature (use W/3189896 Element) |
|
- | |||||
| 17 | 4451410 | Bracket, Support |
|
- | |||||
| 18 | 3148443 | Screw |
|
- | |||||
| 18 | 3187753 | Shield, Heat |
|
- | |||||
| 19 | 3185590 | Seal, Silicone (large (2)) |
|
- | |||||
| 19 | 3185589 | Seal, Silicone (small (3)) |
|
- | |||||
| 21 | 4454437 | Lamp, Hot Surface Indicator |
|
- | |||||
| 22 | 3188533 | Grommet, Wire Way |
|
- |
