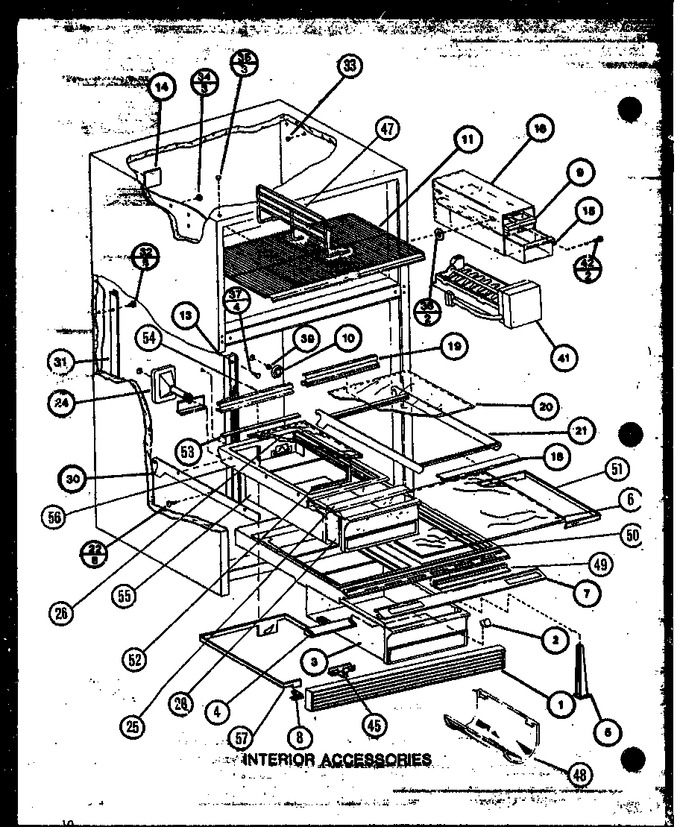

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	D7520506		Grille-toe K		Appelez-nous	-
1	D7520508		Grille-toe L		Appelez-nous	-
2	C8991201		Knob, Crisper Control		Appelez-nous	-
3	D7581028		Pan, Crisper		Appelez-nous	-
4	D7860602		Slide Crisper Cont. A		Appelez-nous	-
5	D7602202		Crisper Support Post		Appelez-nous	-
6	D7421259		Glass Crisper Top Gg		Appelez-nous	-
7	D7616627		Trim A		Appelez-nous	-
8	M0117301		Clip, Grille		Appelez-nous	-
10	M0310314		Plug		Appelez-nous	-
11	D7580704		Shelf, Frz		Appelez-nous	-
13	D7599001		Ladder Center		Appelez-nous	-
18	C8913507		Trim, Front Shelf		Appelez-nous	-
19	C8913603		Trim, Shelf Rear		Appelez-nous	-
20	D7421280		Glass Shelf		Appelez-nous	-
21	D7871001		Assy, Glass Shelf		Appelez-nous	-
22	M0230028		Screw, No.8-32 X 5/16 Pph (blk)		Appelez-nous	-
24	D7859301		Grommet M.k.		Appelez-nous	-
25	C8913528		Trim, Front Shelf		Appelez-nous	-
26	D7421252		Glass Shelf, Mk		Appelez-nous	-
28	D7698318		Meat Pan		Appelez-nous	-
30	D7862901		Blank Side Rail		Appelez-nous	-
30	D7862902		Blank Side Rail		Appelez-nous	-
31	D7599103		Ladder Side		Appelez-nous	-
32	67006425		Screw-sm No.8-1/2lg   (Replaces: M0211017)			Immediately	$ 6.57
33	M0311301		Plug Button		Appelez-nous	-
34	WP67001130		Plug, Button (wht)   (Replaces: M0310701)			Immediately	$ 7.39
36	M0310720		Plug		Appelez-nous	-
36	M0310716		Plug		Appelez-nous	-
37	M0230923		Screw		Appelez-nous	-
41	D7824706Q		Ice Maker   (Replaces: D7824701)			Immediately	$ 150.62
45	D7859401		Slide-mk Control		Appelez-nous	-
47	D7806001		Shelf Wire		Appelez-nous	-
48	D7547603		Rack, Bottle		Appelez-nous	-
49	D7718402		Seal Crisper		Appelez-nous	-
50	D7856502		Frame Crisper		Appelez-nous	-
51	D7859601		Band Crisper Control		Appelez-nous	-
52	A3030305		Gasket-per Ft		Appelez-nous	-
53	B8393601		10043101		Appelez-nous	-
54	C8990403		Trim		Appelez-nous	-
55	D7698107		Sleeve M.k.		Appelez-nous	-
56	D7853302		Frame M.k. V		Appelez-nous	-
57	D7859501		Band M.k. Control		Appelez-nous	-
NI	D7871108		Glass Shelf Assy Q		Appelez-nous	-
NI	R0179131		Glass Crisper Top Assy		Appelez-nous	-
NI	D7871107		Glass Shelf Assy Q		Appelez-nous	-
NI	R9800670		Kit, Screw   (Replaces: M0257244)				$ 9.52
