View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cabinet
02 - Door
03 - Liner, Lit/optional
04 - Unit
05 - Icemaker

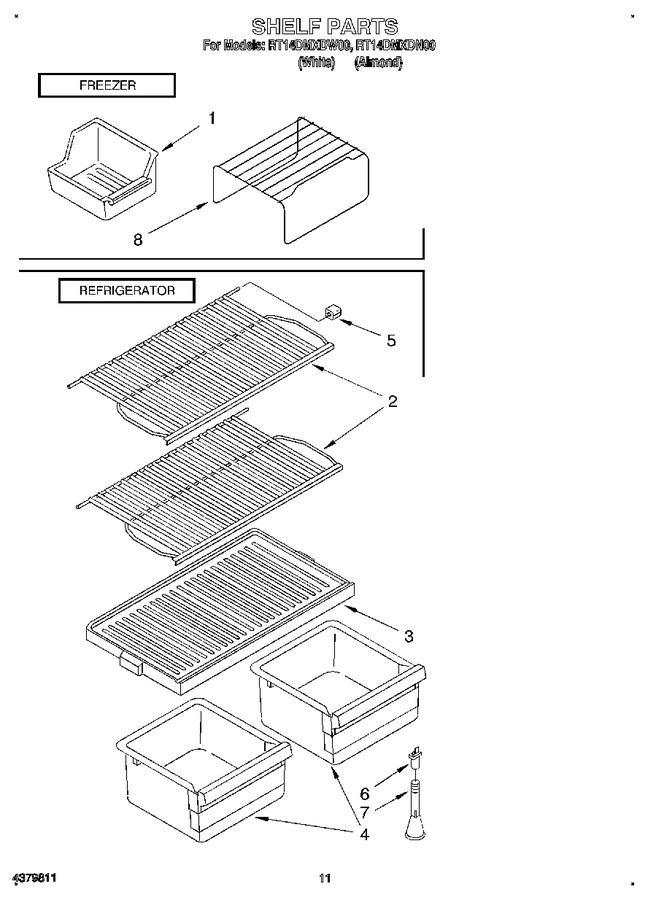

06 - Shelf
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11625904 | Pan, Ice (Replaces: 2166261) |
|
Immediately | $ 61.05 | ||||
| 2 | WP2192515 | Shelf (2) (Replaces: 2174846) |
|
$ 115.61 | |||||
| 3 | WP9791600 | Crisper Cover (Replaces: 2163662) |
|
$ 150.62 | |||||
| 4 | WP2164186 | Pan, Crisper (Replaces: 2163654) |
|
Immediately | $ 131.56 | ||||
| 5 | 9791835 | Thimble (4) |
|
- | |||||
| 6 | 9791824 | Support, Crisper |
|
$ 44.69 | |||||
| 7 | 836410 | Post, Crisper |
|
$ 5.84 | |||||
| 8 | WPW10401596 | Shelf, Ice Tray (Replaces: 2174797) |
|
$ 77.75 |
