SELECT A DIAGRAM

01 - Cabinet Parts


02 - Freezer Door Parts


03 - Shelf Parts

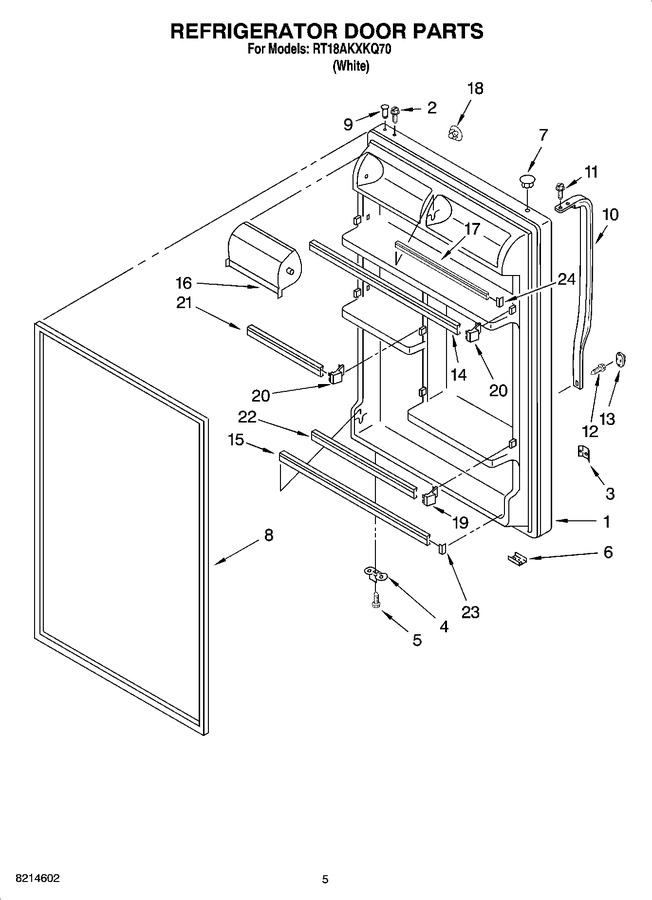

04 - Refrigerator Door Parts


05 - Liner Parts


06 - Unit Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183948		Refrigerator Door (includes Illus. 3,6,8 & 9)		Appelez-nous	-
2	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
3	WP939101		Screw, Anchor   (Replaces: 939101)				$ 7.09
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
6	2183198		Tap Plate		Appelez-nous	-
7	WP2212648		Hole Plug, Hinge   (Replaces: 2212648)			Immediately	$ 7.37
8	2159057		Door Gasket, Magnetic   (Replaces: 2202874)			Immediately	$ 168.76
9	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
10	WP2202807W		Handle, Refrigerator   (Replaces: 2202807W)				$ 146.68
11	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 6.80
12	WP8281146		Screw 8-15 X 1/2   (Replaces: 8281146)				$ 7.36
13	WP2202819W		Screw Cover   (Replaces: 2202819W)			Immediately	$ 7.33
14	WP2201051		Trim, Door Shelf   (Replaces: 2201051)				$ 103.56
15	WPW10421484		Trim, Door Shelf   (Replaces: 2195949)				$ 122.63
16	WP2218113		Door, Compartment   (Replaces: 2218113)			Immediately	$ 45.30
17	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 111.89
18	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 6.99
19	WP2195915		Endcap-trim (2)   (Replaces: 2195915)				$ 12.35
20	WP2156003		Endcap, Trim (4)   (Replaces: 2156003)			Immediately	$ 11.93
21	2201052		Trim, Door Shelf				$ 28.91
22	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 82.60
23	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 11.51
24	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 7.23

    View Diagram in Separate Window       Print Part List
