SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit, Optional

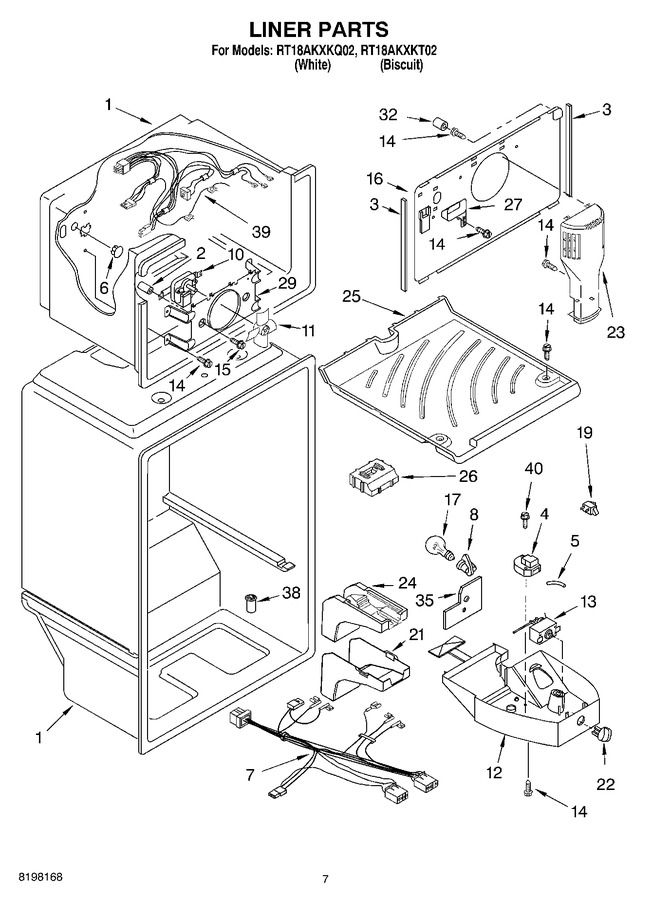

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/A		Liner (not A Serviceable Part)		Appelez-nous	-
2	531933		Grommet (2)				$ 5.70
3	WP2254360		Gasket, Evaporator Cover (2)   (Replaces: 2189270)				$ 25.31
4	WP2304099		Adaptive Defrost Control   (Replaces: 2213473)			Immediately	$ 266.62
5	WP2196003		Thermostat Tube, Barrier   (Replaces: 2204640)				$ 7.52
6	WP941839		Hole, Plug   (Replaces: 941839)				$ 7.23
7	2221667		Wire Assembly, Control Box		Appelez-nous	-
8	4387478		Socket, Light (2)   (Replaces: 2162085)			Immediately	$ 104.10
10	2183833		Fan Motor		Appelez-nous	-
11	WP2163777		Fan Blade   (Replaces: 2163777)			Immediately	$ 96.85
12	2218380		Control Box		Appelez-nous	-
13	WP2204605		Thermostat Assy.   (Replaces: 2221666)			Immediately	$ 89.89
14	WP489478		Screw   (Replaces: 489478)				$ 7.36
15	489412		Screw		Appelez-nous	-
16	2201170		Cover-evaporator		Appelez-nous	-
17	W10887190		Light Bulb   (Replaces: 2160708)			Immediately	$ 17.31
19	W11384469		Rocker Arm Switch   (Replaces: 1118894)			Immediately	$ 35.18
21	2176281		Cover, Air Diffuser				$ 41.64
22	WP2202885		Knob, Thermostat   (Replaces: 2202885)				$ 24.93
23	2182340		Air Tower				$ 43.02
24	WP2189452		Air Diffuser, Bottom   (Replaces: 2189452)			Immediately	$ 117.93
25	2172565		Freezer Floor		Appelez-nous	-
26	2179877		Air Diffuser, Top		Appelez-nous	-
27	2205003		Cover, Hole		Appelez-nous	-
29	2200641		Bracket, Fan Motor		Appelez-nous	-
32	WP487996		Cap   (Replaces: 487996)				$ 7.80
35	2204639		Shield, Heat		Appelez-nous	-
38	WP2210509		Valve, Tube-body   (Replaces: 2210509)				$ 89.24
39	2187301		Wire Assembly		Appelez-nous	-
40	WP98129		Screw   (Replaces: 98129)				$ 7.36

    View Diagram in Separate Window       Print Part List
