SELECT A DIAGRAM
01 - Cabinet
02 - Freezer Door
03 - Shelf
04 - Refrigerator Door
05 - Liner
06 - Unit, Lit/optional
SELECT A DIAGRAM
New Model Search:

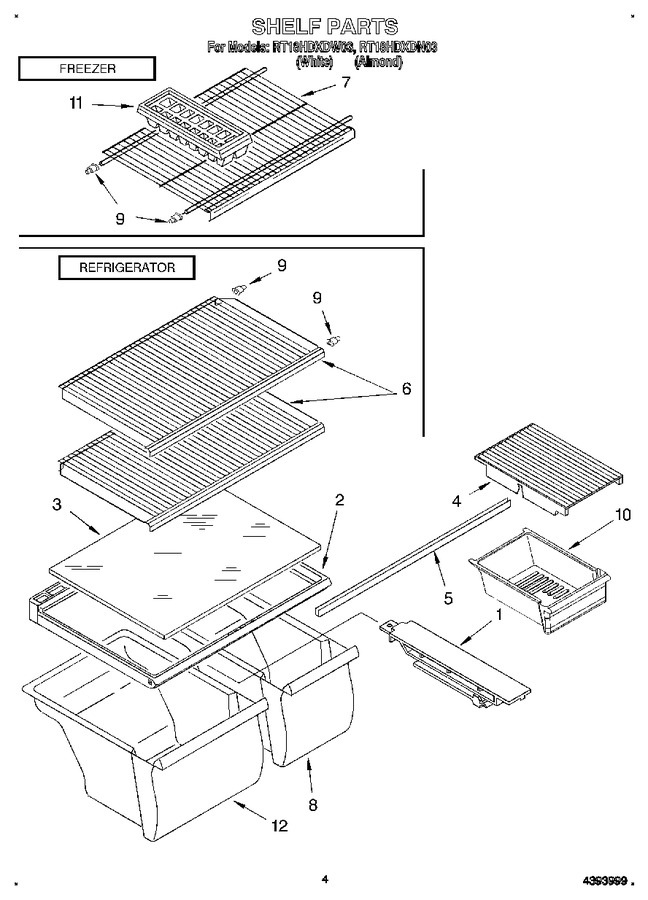

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2163835 | Track, Crisper (Replaces: 2163835) |
|
Immediately | $ 32.83 | ||||
| 2 | WP2314548 | Crisper Cover (Replaces: 2163833) |
|
$ 233.85 | |||||
| 3 | WP2169921 | Glass, Crisper Cover (Replaces: 2173299) |
|
$ 233.04 | |||||
| 4 | 2163848 | Cover, Meat Pan |
|
$ 71.41 | |||||
| 5 | WP2172748 | Crisper Support (Replaces: 2172541) |
|
$ 91.87 | |||||
| 6 | 2182443 | Shelf, Wire (2) |
|
- | |||||
| 7 | WP2176275 | Shelf, Freezer (Replaces: 2176275) |
|
$ 111.06 | |||||
| 8 | W10856580 | Pan, Crisper (Replaces: 2173310) |
|
Immediately | $ 159.33 | ||||
| 9 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 10 | 2173312 | Pan, Meat |
|
- | |||||
| 11 | WP841180A | Ice Tray (Replaces: 841180) |
|
Immediately | $ 43.06 | ||||
| 12 | W10854037 | Pan, Crisper (Replaces: 2173311) |
|
Immediately | $ 161.27 |
