SELECT A DIAGRAM

01 - Cabinet, Literature


02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit, Optional

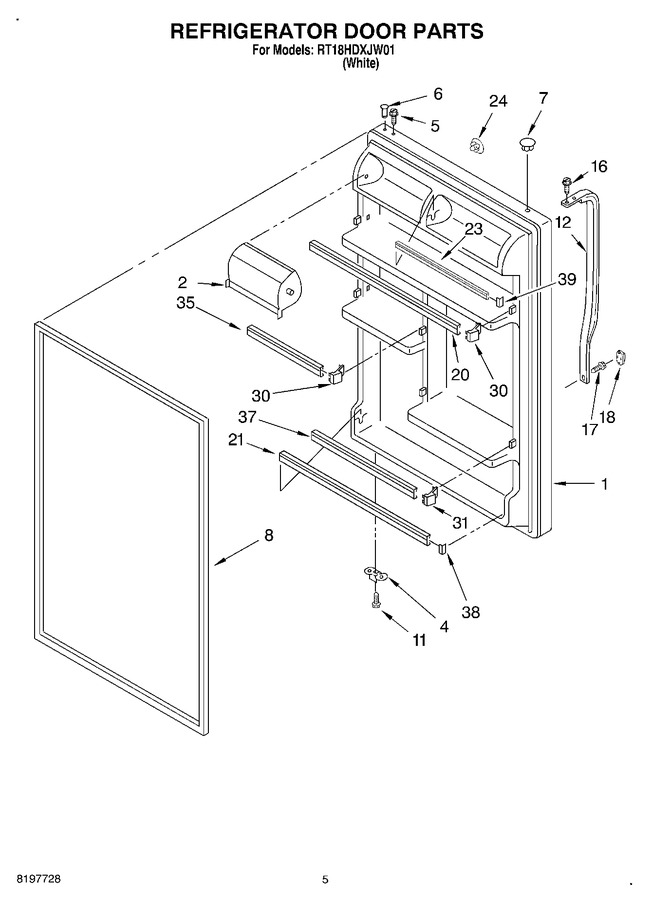

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2183948		Refrigerator Door (includes No.6 & No.8)		Appelez-nous	-
2	2205232		Door, Compartment		Appelez-nous	-
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
5	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
6	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
7	WP2212648		Hole Plug   (Replaces: 844478)			Immediately	$ 7.37
8	2159057		Door Gasket, Magnetic			Immediately	$ 168.76
11	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
12	WP2202807W		Handle, Door   (Replaces: 2202807W)				$ 146.68
16	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
17	WP8281146		Screw, 8 X 1/2   (Replaces: 8281146)				$ 7.36
18	WP2202819W		Screw Cover   (Replaces: 2202819W)			Immediately	$ 7.33
20	WP2201051		Trim, Door Shelf   (Replaces: 2201051)				$ 103.56
21	WPW10421484		Trim, Door Shelf   (Replaces: 2195949)				$ 122.63
23	WP2201061		Trim, Door Shelf   (Replaces: 2180027)				$ 111.89
24	WP2189000		Hole Plug, Handle   (Replaces: 2189000)			Immediately	$ 6.99
30	WP2156003		Endcap, Trim (4)   (Replaces: 2156003)			Immediately	$ 11.93
31	WP2195915		Endcap-trim (2)   (Replaces: 2195915)				$ 12.35
35	2201052		Trim, Door Shelf				$ 28.91
37	WP2195943		Trim, Door Shelf   (Replaces: 2195943)				$ 82.60
38	WP2156006		Plug-trim (2)   (Replaces: 2156006)			Immediately	$ 11.51
39	WP2156007		Plug-trim (2)   (Replaces: 2156007)			Immediately	$ 7.23

    View Diagram in Separate Window       Print Part List
