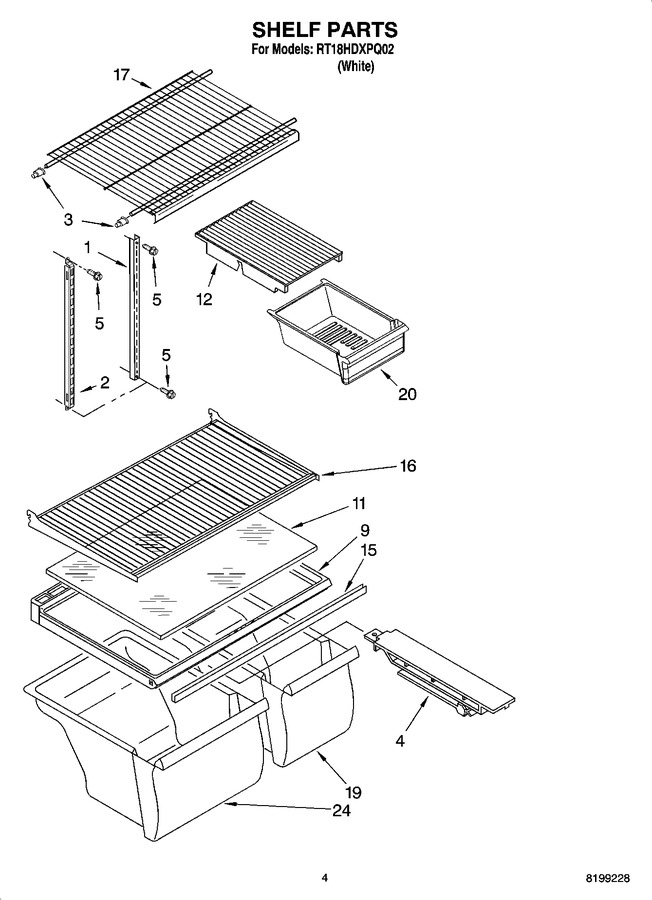

03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Liner Parts
06 - Unit Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2210522 | Shelf, Ladder (2) |
|
$ 44.10 | |||||
| 2 | 2300520 | Shelf, Ladder Center |
|
$ 75.36 | |||||
| 3 | WPW10130299 | Cup, Shelf Mtg. (Replaces: 2163762) |
|
Immediately | $ 13.23 | ||||
| 4 | WP2163835 | Track, Crisper (Replaces: 2163835) |
|
Immediately | $ 32.83 | ||||
| 5 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 9 | WP2314548 | Crisper Cover (Replaces: 2221752) |
|
$ 233.85 | |||||
| 11 | WP2169921 | Glass, Crisper Cover (Replaces: 2221693) |
|
$ 233.04 | |||||
| 12 | 2163848 | Pan, Cover |
|
$ 71.41 | |||||
| 15 | WP2172748 | Crisper Support (Replaces: 2172541) |
|
$ 91.87 | |||||
| 16 | 2163856 | Shelf, Full Cantilever |
|
- | |||||
| 17 | 2189453 | Shelf, Freezer |
|
- | |||||
| 19 | W10856580 | Pan, Crisper (Replaces: 2166257) |
|
Immediately | $ 159.33 | ||||
| 20 | 2200920K | Pan, Meat |
|
$ 81.92 | |||||
| 24 | W10854037 | Crisper Pan (Replaces: 2166256) |
|
Immediately | $ 161.27 |
