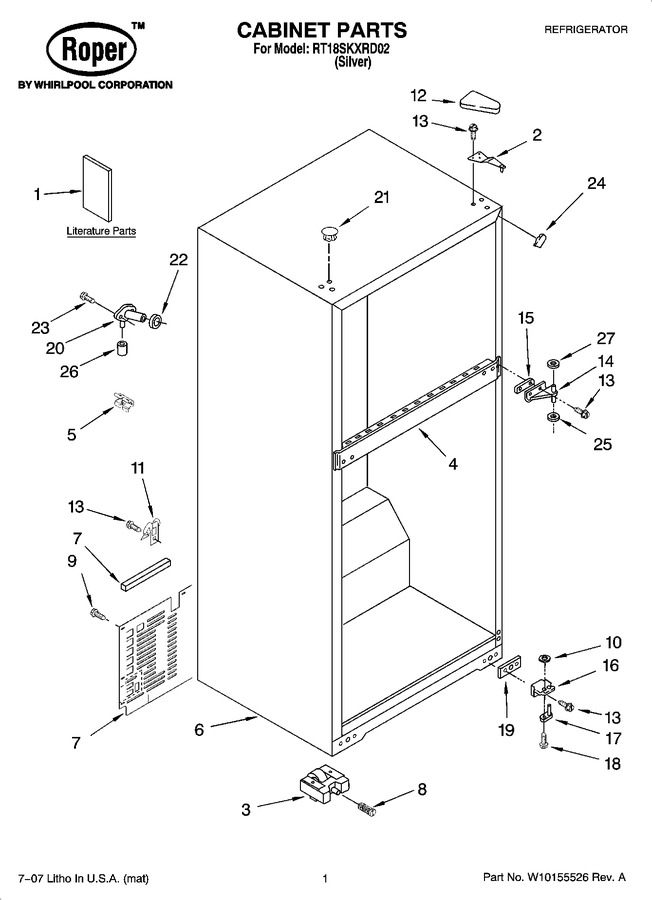

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	677969		Do-it-yourself Manual, Ref./fzr.				$ 30.30
1	W10145175		Service & Wiring Sheet		Appelez-nous	-
1	W10123832		Energy Label		Appelez-nous	-
1	2316018		Use & Care Guide		Appelez-nous	-
2	WP2261963		Hinge (top)   (Replaces: 2261963)			Immediately	$ 107.48
3	2324094		Roller, Front				$ 342.09
5	2266506		Spacer-back Cb				$ 12.95
7	WP2264132		Cover, Unit   (Replaces: 2264132)				$ 102.39
8	2222100		Screw				$ 94.32
9	WP489442		Screw   (Replaces: 489442)			Immediately	$ 10.34
10	WP488296		Washer   (Replaces: 488296)			Immediately	$ 6.80
11	549193		Clamp-cord				$ 12.65
12	WP2213363		Cover, Hinge   (Replaces: 2213363)			Immediately	$ 17.21
13	WP489497		Screw   (Replaces: 489497)			Immediately	$ 26.18
14	WP2166037		Hinge, Center   (Replaces: 2166086)				$ 76.57
15	2215385		Shim, Hinge Center				$ 82.21
16	WP2325482		Hinge Butt   (Replaces: 2221926)			Immediately	$ 72.00
17	9791682		Hinge-pin, Bottom				$ 26.60
18	WP3428970		Screw   (Replaces: 3428970)				$ 10.38
19	WP2201567		Shim, Bottom Hinge   (Replaces: 2201567)			Immediately	$ 7.34
20	WP2196157		Fitting,water Tube   (Replaces: 2174760)			Immediately	$ 11.33
21	WP2183998		Hole Plug (6)   (Replaces: 2183998)				$ 17.11
22	WP1106508		Seal Gasket   (Replaces: 1106508)			Immediately	$ 9.39
23	WP488729		Screw   (Replaces: 2262176)			Immediately	$ 7.45
24	W11500943		Corner Filler (2)   (Replaces: 2215384)				$ 7.18
25	WP487576		Washer   (Replaces: 487576)			Immediately	$ 9.67
26	WP487996		Cap Bushing   (Replaces: 487996)				$ 7.80
27	WP487802		Washer (7/64 Nylon)   (Replaces: 487802)			Immediately	$ 7.12
