SELECT A DIAGRAM

01 - Cabinet Parts

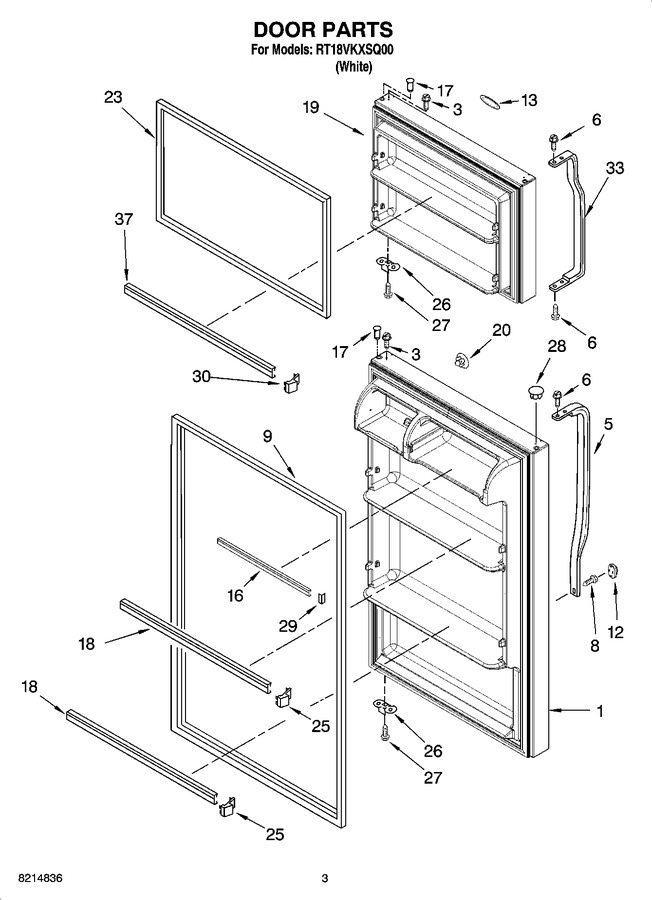

02 - Door Parts


03 - Liner Parts


04 - Unit Parts


05 - Shelf Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2263256W		Refrigerator Door Includes Item 9 (white)		Appelez-nous	-
3	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
5	WP2221946W		Handle (rc Door) (white)   (Replaces: 2221946W)			Immediately	$ 117.10
6	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
8	WP8281146		Screw   (Replaces: 8281146)				$ 7.36
9	WP2319264T		Door Gasket, Magnetic   (Replaces: 2263258)			Immediately	$ 193.96
12	WP2202819W		Screw Cover (white)   (Replaces: 2202819W)			Immediately	$ 7.33
13	2212881		Nameplate (white)		Appelez-nous	-
16	W11129820		Trim, Door Shelf (upper)   (Replaces: 2264785)			Immediately	$ 114.61
17	WP2183003		Thimble   (Replaces: 2262054)				$ 7.33
18	WP2266738		Trim, Door (middle)   (Replaces: 2263259)				$ 100.52
19	2263254W		Freezer Door Includes Item 23		Appelez-nous	-
20	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 6.99
23	WP2319263T		Door Gasket, Magnetic   (Replaces: 2263257)			Immediately	$ 194.27
25	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 11.86
26	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
27	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
28	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
29	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.23
30	WP2156003		Plug-trim   (Replaces: 2156003)			Immediately	$ 11.93
33	WP2202098		Handle (fc Door)   (Replaces: 2202098)				$ 141.14
37	WP2266727		Trim-door (2)   (Replaces: 2263260)			Immediately	$ 108.51

    View Diagram in Separate Window       Print Part List
