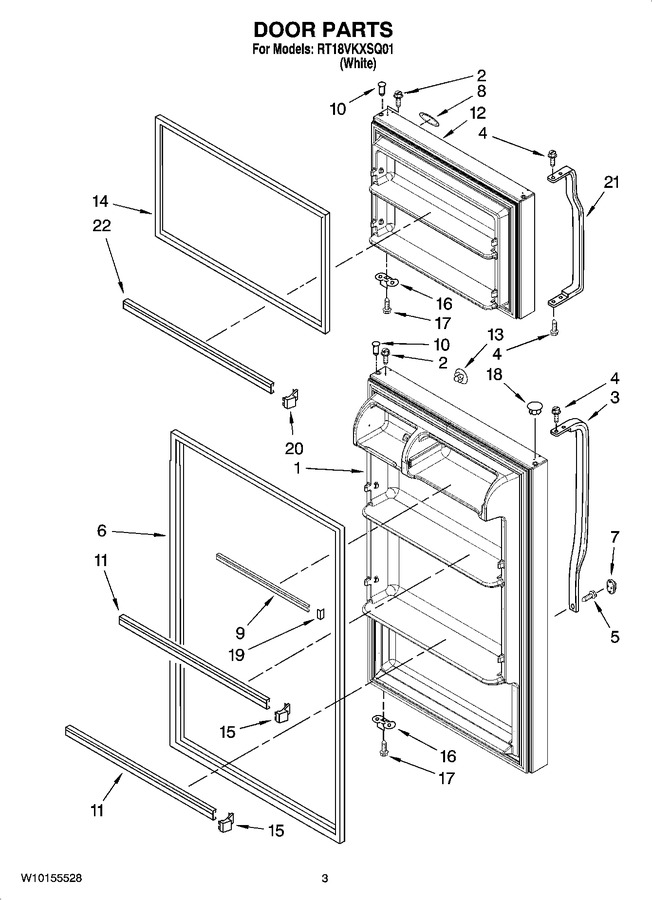

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2263256W		Refrigerator Door Includes Item 6 (white)		Appelez-nous	-
2	WP8281206		Screw   (Replaces: 8281206)				$ 7.53
3	WP2221946W		Handle (rc Door) (white)   (Replaces: 2221946W)			Immediately	$ 117.10
4	WP489357		Screw   (Replaces: 489357)			Immediately	$ 6.80
5	WP8281146		Screw   (Replaces: 8281146)				$ 7.36
6	WP2319264T		Door Gasket, Magnetic   (Replaces: 2263258)			Immediately	$ 193.96
7	WP2202819W		Screw Cover (white)   (Replaces: 2202819W)			Immediately	$ 7.33
8	2212881		Nameplate (white)		Appelez-nous	-
9	W11129820		Trim, Door Shelf (upper)   (Replaces: 2266729)			Immediately	$ 114.61
10	WP2183003		Thimble   (Replaces: 2262054)				$ 7.33
11	WP2266738		Trim, Door (middle)   (Replaces: 2266738)				$ 100.52
12	2263254W		Freezer Door Includes Item 14		Appelez-nous	-
13	WP2189000		Hole Plug (white)   (Replaces: 2189000)			Immediately	$ 6.99
14	WP2319263T		Door Gasket, Magnetic   (Replaces: 2263257)			Immediately	$ 194.27
15	WP2195916K		Endcap, Trim   (Replaces: 2195916)			Immediately	$ 11.86
16	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
17	WP488921		Screw   (Replaces: 488921)			Immediately	$ 7.42
18	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
19	WP2156007		Plug, Trim   (Replaces: 2156007)			Immediately	$ 7.23
20	WP2156003		Plug-trim   (Replaces: 2156003)			Immediately	$ 11.93
21	WP2202098		Handle (fc Door)   (Replaces: 2202098)				$ 141.14
22	WP2266727		Trim-door (2)   (Replaces: 2266727)			Immediately	$ 108.51
