SELECT A DIAGRAM

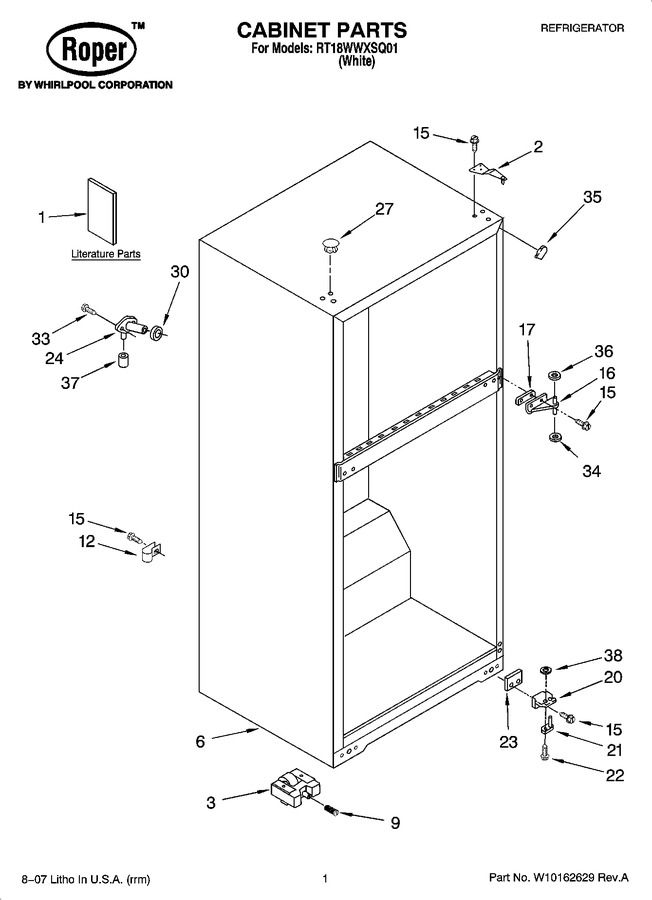

01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts
05 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316018 | Use & Care Guide |
|
- | |||||
| 1 | 677969 | Do-it-yourself Manual Ref./frz. |
|
$ 30.30 | |||||
| 1 | W10146196 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10130122 | Energy Label |
|
- | |||||
| 2 | WP2261963 | Hinge (top) (Replaces: 2261963) |
|
Immediately | $ 107.48 | ||||
| 3 | 2324094 | Roller, Front |
|
$ 342.09 | |||||
| 9 | 2222100 | Screw |
|
$ 94.32 | |||||
| 12 | 549193 | Clamp-cord |
|
$ 12.65 | |||||
| 15 | WP489497 | Screw (Replaces: 489497) |
|
Immediately | $ 26.18 | ||||
| 16 | WP2166037 | Hinge, Center (Replaces: 2166086) |
|
$ 76.57 | |||||
| 17 | 2166043 | Shim, Hinge Center |
|
$ 62.78 | |||||
| 20 | WP2325482 | Hinge Butt (Replaces: 2221926) |
|
Immediately | $ 72.00 | ||||
| 21 | 9791682 | Hinge-pin, Bottom |
|
$ 26.60 | |||||
| 22 | WP3428970 | Screw (Replaces: 3428970) |
|
$ 10.38 | |||||
| 23 | WP2201567 | Shim, Bottom Hinge (Replaces: 2201567) |
|
Immediately | $ 7.34 | ||||
| 24 | WP2196157 | Fitting,water Tube (Replaces: 2174760) |
|
Immediately | $ 11.33 | ||||
| 27 | WP2151652 | Hole Plug (6) (Replaces: 2201012) |
|
$ 20.58 | |||||
| 30 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 33 | WP488729 | Screw (Replaces: 2262176) |
|
Immediately | $ 7.45 | ||||
| 34 | WP489467 | Washer (Replaces: 489341) |
|
Immediately | $ 10.28 | ||||
| 35 | W10859322 | Corner Filler (Replaces: 2166003) |
|
$ 7.28 | |||||
| 36 | WP487576 | Washer (Replaces: 487576) |
|
Immediately | $ 9.67 | ||||
| 37 | WP487996 | Cap Bushing (Replaces: 487996) |
|
$ 7.80 | |||||
| 38 | WP487802 | Washer (7/64 Nylon) (Replaces: 487802) |
|
Immediately | $ 7.12 |
