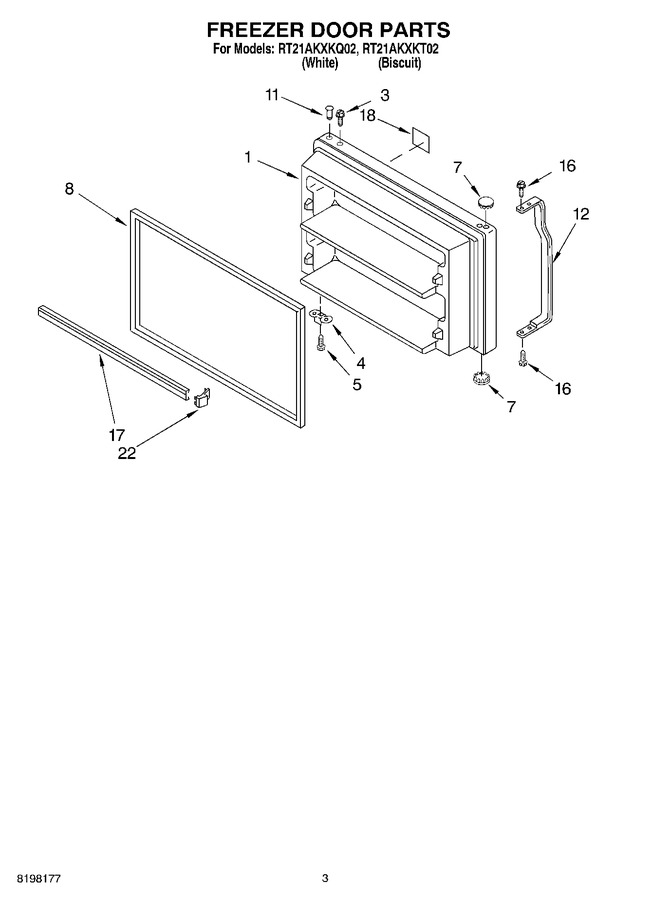

02 - Freezer Door


03 - Shelf


04 - Refrigerator Door


05 - Liner


06 - Unit, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W11023679		Freezer Door (includes No.8 & No.11) (white)   (Replaces: 2182489)				$ 682.52
1	W11023688		Freezer Door (includes No.8 & No.11) (biscuit)   (Replaces: 2204686)		Appelez-nous	-
3	WP8281206		Screw 8-18 X 1/2   (Replaces: 8281206)				$ 7.53
4	W11745278		Bracket, Door Stop   (Replaces: 2189202)			Immediately	$ 12.03
5	WP488921		Screw, 8 X 1/2   (Replaces: 488921)			Immediately	$ 7.42
7	WP2212649		Hole Plug (biscuit)   (Replaces: 2212649)				$ 7.19
7	WP2212648		Hole Plug (white)   (Replaces: 2212648)			Immediately	$ 7.37
8	2159060		Door Gasket, Magnetic (service)   (Replaces: 2214967)				$ 302.41
11	WP2183003		Thimble   (Replaces: 2183003)				$ 7.33
12	2202806T		Handle, Center (biscuit)				$ 63.61
12	WP2202806W		Handle, Center (white)   (Replaces: 2202806W)				$ 139.86
16	WP489357		Screw 8-18 X 5/8   (Replaces: 489357)			Immediately	$ 6.80
17	WP2201060		Trim, Door Shelf (2)   (Replaces: 2201060)				$ 108.19
18	2212883		Nameplate (biscuit)		Appelez-nous	-
18	2212881		Nameplate (white)		Appelez-nous	-
22	WP2156003		Endcap, Trim (4)   (Replaces: 2156003)			Immediately	$ 11.93
