01 - Cabinet Parts

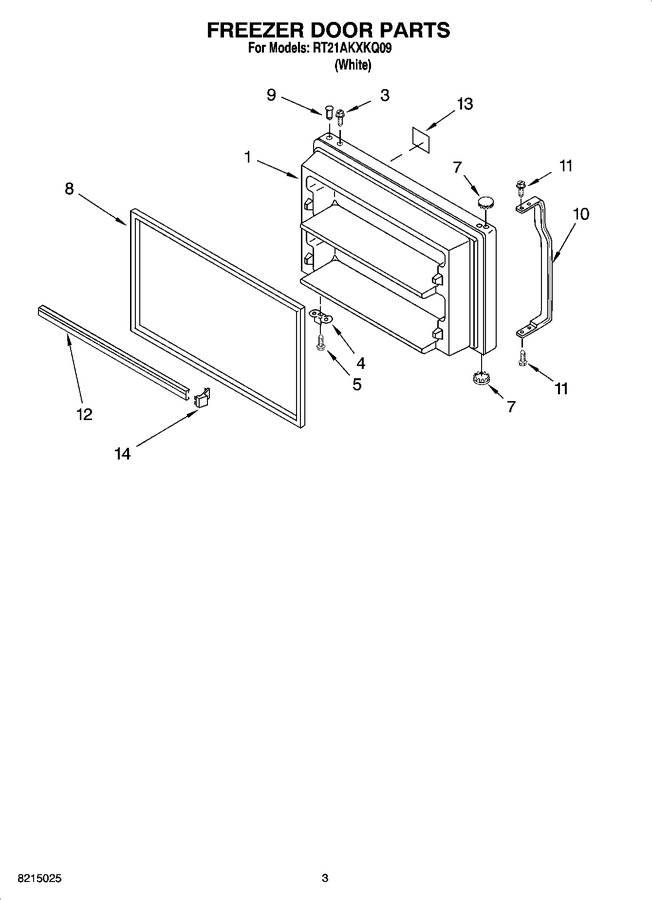

02 - Freezer Door Parts
03 - Shelf Parts
04 - Refrigerator Door Parts
05 - Liner Parts
06 - Unit Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11023679 | Freezer Door (includes Illus. 8 & 9) (Replaces: 2182489) |
|
$ 682.52 | |||||
| 3 | WP8281206 | Screw 8-18 X 1/2 (Replaces: 8281206) |
|
$ 7.53 | |||||
| 4 | W11745278 | Bracket, Door Stop (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 5 | WP681249 | Screw, 8 X 1/2 (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 7 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 8 | 2159060 | Door Gasket, Magnetic (service) (Replaces: 2214967) |
|
$ 302.41 | |||||
| 9 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 6.80 | |||||
| 10 | WP2202806W | Handle, Freezer (Replaces: 2202806W) |
|
$ 139.86 | |||||
| 11 | 8534058 | Screw 8-18 X 5/8 |
|
$ 8.87 | |||||
| 12 | WP2201060 | Trim, Door Shelf (2) (Replaces: 2201060) |
|
$ 108.19 | |||||
| 13 | 2212881 | Nameplate |
|
- | |||||
| 14 | WP2156003 | Endcap, Trim (4) (Replaces: 2156003) |
|
Immediately | $ 11.93 |
