01 - Cabinet Parts
02 - Door Parts
03 - Liner Parts
04 - Unit Parts

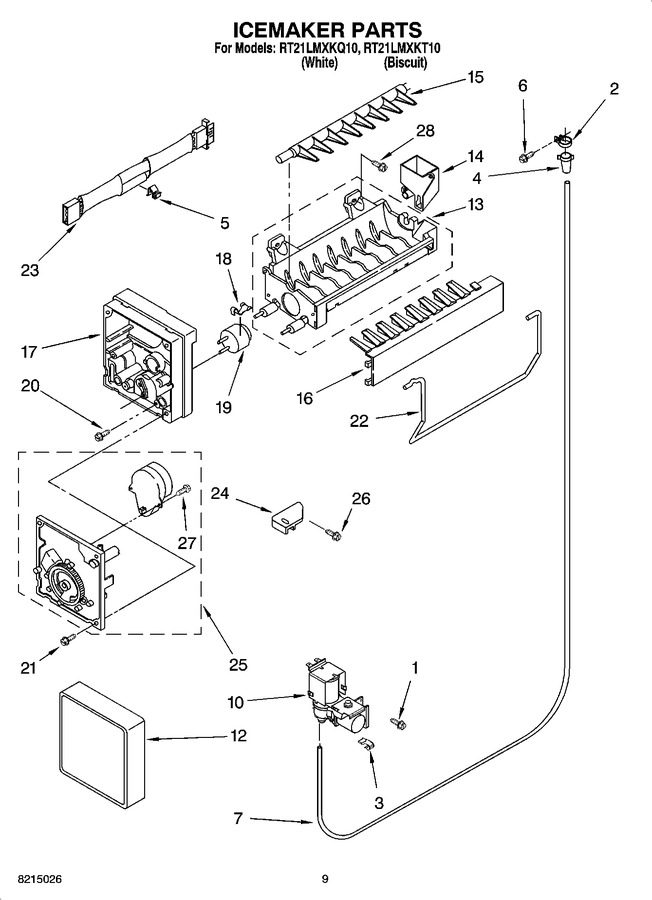

05 - Icemaker Parts
06 - Shelf Parts, Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP489464 | Screw (Replaces: 489464) |
|
Immediately | $ 7.54 | ||||
| 2 | WP488878 | Tube Clamp (Replaces: 488878) |
|
$ 10.96 | |||||
| 3 | 2210495 | Clip, Water Valve |
|
- | |||||
| 4 | 4387491 | Insert, Tube (Replaces: 2181939) |
|
$ 7.41 | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 6 | WP488787 | Screw (Replaces: 488886) |
|
$ 10.13 | |||||
| 7 | W10823511 | Tube Water (Replaces: 2181943) |
|
Immediately | $ 29.17 | ||||
| 10 | WP2315576 | Valve Solenoid (Replaces: 2315576) |
|
Immediately | $ 88.31 | ||||
| 12 | WPW10289690 | Cover (Replaces: 2210484) |
|
$ 7.94 | |||||
| 13 | WPW10190929 | Mold & Heater Assembly (also Order 542638 Silicone Grease) (Replaces: 628228) |
|
$ 210.17 | |||||
| 14 | WP628356 | Cup-water Fill (Replaces: 628356) |
|
$ 48.38 | |||||
| 15 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 16 | WP2182124 | Ice Striper (Replaces: 2182124) |
|
$ 81.32 | |||||
| 17 | WP2195914 | Support (Replaces: 2194712) |
|
$ 98.82 | |||||
| 18 | WP2315522 | Retainer, Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 19 | WP627985 | Thermostat (also Order 542369 Cement Alumilastic) (Replaces: 627985) |
|
$ 103.18 | |||||
| 20 | 8533917 | Screw |
|
$ 12.64 | |||||
| 21 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 22 | WP627792 | Shut Off Arm (Replaces: 627792) |
|
$ 79.88 | |||||
| 23 | WP2187464 | Harness, Wiring (Replaces: 2187464) |
|
$ 117.72 | |||||
| 24 | W11500948 | Bracket (Replaces: 628320) |
|
Immediately | $ 30.40 | ||||
| 25 | W10190935 | Module Assembly (includes Item 27) (Replaces: 626680) |
|
Immediately | $ 122.65 | ||||
| 26 | WP489478 | Screw (Replaces: 489478) |
|
$ 7.36 | |||||
| 27 | 489136 | Screw (3-24 X 23/64) |
|
$ 9.72 | |||||
| 28 | WP488163 | Screw (Replaces: 488208) |
|
$ 7.13 | |||||
| 100 | 4317943 | Icemaker, Complete Assembly (Replaces: 626636) |
|
Immediately | $ 165.11 |
