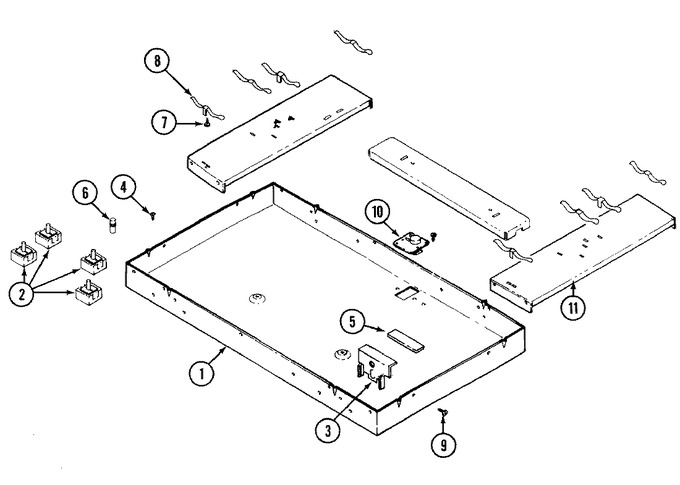

01 - Body
02 - Top Assembly
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP71001171 | Screw (Replaces: Y04100522) | 11 |
|
$ 6.57 | ||||
| 1 | 74006976 | Box, Burner | 14 |
|
- | ||||
| 1 | 71001027 | Box, Burner | 11 |
|
- | ||||
| 2 | W11120791 | Switch, Infinite (Replaces: 703650) | 11 |
|
Immediately | $ 103.48 | |||
| 3 | 71001107 | Plate, Switch | 11 |
|
- | ||||
| 4 | WP90767 | Screw (Replaces: Y700502) | 14 |
|
Immediately | $ 7.43 | |||
| 4 | WP90767 | Screw (Replaces: Y700502) | 11 |
|
Immediately | $ 7.43 | |||
| 5 | 71001239 | Pad, Glass Support | 11 |
|
- | ||||
| 6 | Y706125 | Light, Indicator | 11 |
|
- | ||||
| 7 | WP7101P309-60 | Screw (Replaces: Y04100501) | 11 |
|
Immediately | $ 6.57 | |||
| 8 | 74007134 | Spring, Element Support (Replaces: Y04100418) | 11 |
|
$ 11.03 | ||||
| 9 | WP74004005 | Screw (Replaces: Y708359) | 11 |
|
$ 7.79 | ||||
| 10 | WPW10339879 | Tie, Cable (Replaces: 701678) | 14 |
|
$ 7.47 | ||||
| 10 | 702731 | Screw | 11 |
|
- | ||||
| 10 | 71001032 | Wire Cable Assy. | 11 |
|
- | ||||
| 11 | 71001185 | Tie, Cable | 11 |
|
- | ||||
| 11 | Y04100425 | Wire, Violet (18``) | 11 |
|
- | ||||
| 11 | 04100443 | Crossbar, Elem Support | 14 |
|
- | ||||
| 11 | Y04100650 | Wire, Blue | 11 |
|
- | ||||
| 11 | 71001035 | Wire, Yellow | 11 |
|
- | ||||
| 11 | 71001034 | Wire, Orange | 11 |
|
- | ||||
| 11 | 71001033 | Wire, Orange (pilot) | 11 |
|
- | ||||
| 11 | 71001036 | Wire, Violet | 11 |
|
- | ||||
| 11 | Y04100419 | Crossbar, Elem Support | 11 |
|
- | ||||
| 11 | Y04100424 | Wire, Yellow (15``) | 11 |
|
- |
