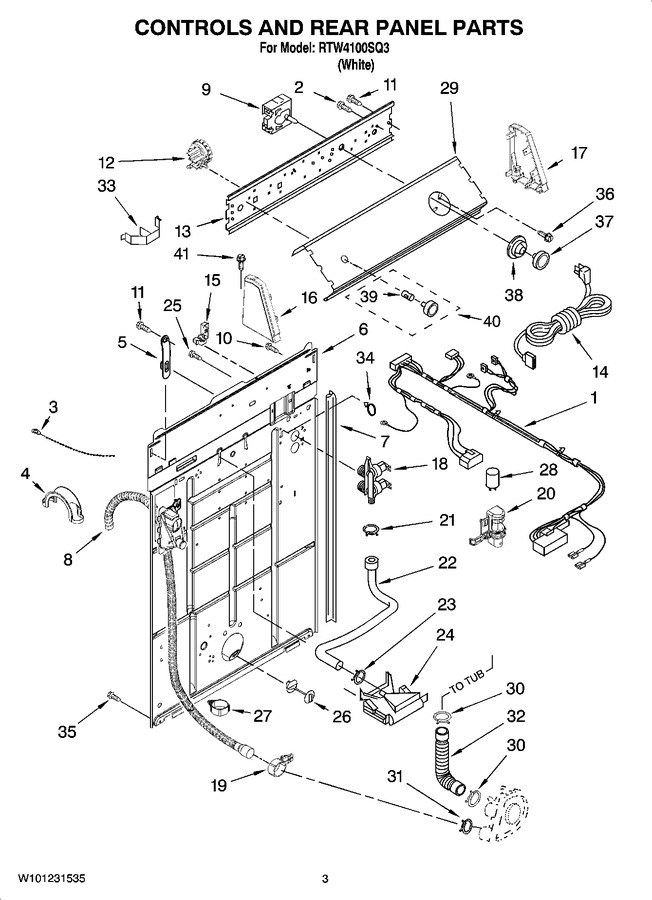

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10071410 | Harness, Wiring (for Detail See Pages 9 & 10) |
|
- | |||||
| 2 | 3400073 | Screw, Ground |
|
- | |||||
| 3 | WPW10339879 | Cable Tie (Replaces: 3347868) |
|
$ 7.47 | |||||
| 4 | WP8577378 | U-bend, Drain Hose (Replaces: 8577378) |
|
$ 7.53 | |||||
| 5 | WP8568314 | Strap, Console (2) (Replaces: 8568314) |
|
$ 7.35 | |||||
| 6 | 8318015 | Panel, Rear |
|
$ 148.59 | |||||
| 7 | WP62747 | Pad, Rear Panel (Replaces: 62747) |
|
$ 24.81 | |||||
| 8 | WPW10096921 | Drain Hose Assembly (includes Items 19 & 27) (Replaces: W10138068) |
|
Immediately | $ 65.84 | ||||
| 9 | WP8546681 | Timer, Control (60 Hz.) (motor Not A Service Part) (Replaces: 8546681) |
|
$ 393.99 | |||||
| 10 | WP3351614 | Screw, Ground (Replaces: 3351614) |
|
Immediately | $ 6.57 | ||||
| 11 | WP90767 | Screw, 8-18 X 3/8 (Replaces: 90767) |
|
Immediately | $ 7.43 | ||||
| 12 | W10339334 | Switch, Water Level (Replaces: 8577845) |
|
Immediately | $ 224.83 | ||||
| 13 | WP3948608 | Bracket, Control (Replaces: 3948608) |
|
$ 109.80 | |||||
| 14 | W10820044 | Cord, Power (includes Item 15) (Replaces: 8578842) |
|
$ 134.88 | |||||
| 15 | 3952821 | Strain Relief, Power Cord |
|
- | |||||
| 16 | 279960 | Cap, End (l.h.) (Replaces: 8274437) |
|
$ 78.81 | |||||
| 17 | 279960 | Cap, End (r.h.) (Replaces: 8274434) |
|
$ 78.81 | |||||
| 18 | WPW10113122 | Valve, Water Mixing (Replaces: W10113122) |
|
$ 185.80 | |||||
| 19 | 8541668 | Clamp, Hose |
|
$ 20.09 | |||||
| 20 | 8318046 | Clip, Capacitor |
|
$ 79.31 | |||||
| 21 | WP596669 | Clamp, Hose (Replaces: 301958) |
|
Immediately | $ 7.94 | ||||
| 22 | WP3357328 | Hose, Vacuum Break (Replaces: 8541607) |
|
Immediately | $ 22.30 | ||||
| 23 | WP596669 | Clamp, Hose (Replaces: 370450) |
|
Immediately | $ 7.94 | ||||
| 24 | WP3347034 | Break, Vacuum (Replaces: 3347034) |
|
Immediately | $ 85.48 | ||||
| 25 | WP9740848 | Screw, 8-18 X 1/2 (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 26 | WP8519200 | Support, Rear Panel (Replaces: 8519200) |
|
Immediately | $ 17.87 | ||||
| 27 | 8541667 | Clamp, Hose |
|
$ 5.86 | |||||
| 28 | WP8572717 | Capacitor, Motor Start (Replaces: 8572717) |
|
Immediately | $ 87.84 | ||||
| 29 | W10086570 | Panel, Console |
|
- | |||||
| 30 | WP616099 | Clamp, Hose (Replaces: 3363366) |
|
Immediately | $ 7.72 | ||||
| 31 | WP285655 | Clamp, Hose (Replaces: 8317496) |
|
Immediately | $ 7.93 | ||||
| 32 | 285871 | Hose, Pump To Tub (includes Item 30) (Replaces: 3951449) |
|
Immediately | $ 26.09 | ||||
| 33 | 8055003 | Clip, Harness & Pressure Hose |
|
$ 36.24 | |||||
| 34 | 8559320 | Restraint, Hose |
|
$ 43.33 | |||||
| 35 | WP3390631 | Screw, 10-16 X 3/8 (Replaces: 62863) |
|
$ 7.43 | |||||
| 36 | WP3400818 | Screw, Timer Mounting (Replaces: 3400818) |
|
$ 7.93 | |||||
| 37 | WP8538949 | Knob, Timer (Replaces: 8538949) |
|
$ 55.77 | |||||
| 38 | WP8538955 | Dial, Timer (Replaces: 8538955) |
|
$ 50.11 | |||||
| 39 | WP8536939 | Clip, Knob (Replaces: 8536939) |
|
Immediately | $ 7.38 | ||||
| 40 | WP8538957 | Knob, Control (Replaces: 8538957) |
|
$ 52.68 | |||||
| 41 | WP388326 | Screw, 8-18 X 1.25 (panel To Top) (Replaces: 388326) |
|
$ 8.36 |
