02 - Cabinet


03 - Liner, Lit/optional


04 - Door


05 - Unit

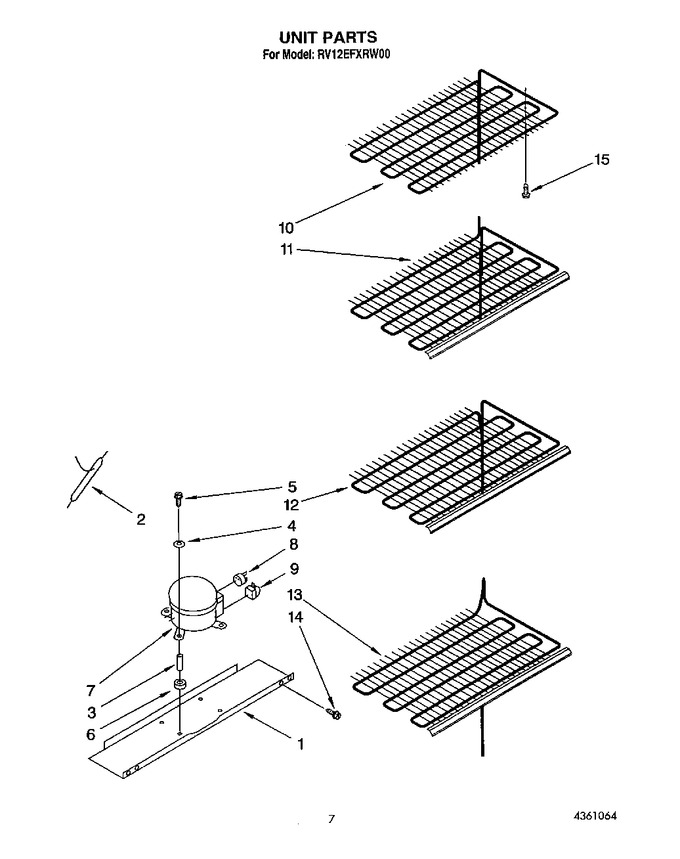

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4356907		Compressor Mounting Pan		Appelez-nous	-
2	W10843121		Drier Assembly   (Replaces: 4356845)			Immediately	$ 51.42
3	4356846		Compressor Grommet Sleeve				$ 13.50
4	4356847		Washer		Appelez-nous	-
5	4356852		Compressor Mounting Screw				$ 6.57
6	4356855		Compressor Grommet		Appelez-nous	-
7	4356908		Compressor		Appelez-nous	-
8	4356857		Relay		Appelez-nous	-
9	4356906		Overload		Appelez-nous	-
10	4356882		Evaporator Top		Appelez-nous	-
11	4356885		Evaporator Shelf (one)		Appelez-nous	-
12	4356886		Evaporator Shelf (two)		Appelez-nous	-
13	4356887		Evaporator Shelf (three)		Appelez-nous	-
14	WP3-24838-048		Compressor Pan Screw   (Replaces: 4356820)				$ 7.50
15	4356851		Evaporator, Mounting Screw		Appelez-nous	-
