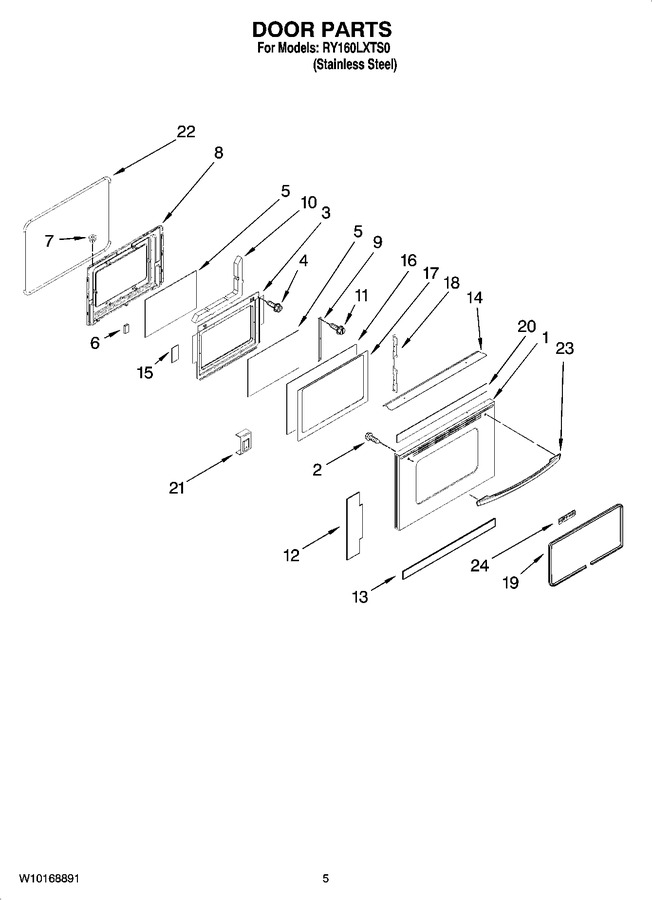

01 - Cooktop Parts
02 - Control Panel Parts
03 - Chassis Parts
04 - Door Parts
05 - Drawer And Rack Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10168887 | Panel, Door (ss) |
|
- | |||||
| 2 | WP74006515 | Screw, Handle (2) (Replaces: 74006635) |
|
$ 8.84 | |||||
| 3 | 3601F373-51 | Baffle, Retainer (Replaces: 74011457) |
|
$ 284.93 | |||||
| 4 | W11233072 | Screw, (8ab 1/2) (Replaces: 74001530) |
|
Immediately | $ 14.72 | ||||
| 5 | 74003645 | Glass, Inner (2) |
|
Immediately | $ 223.59 | ||||
| 6 | WP74005546 | Spacer, Rubber (Replaces: 74005546) |
|
$ 11.06 | |||||
| 7 | WP74001574 | Nut, Snap (4) (Replaces: 74001574) |
|
Immediately | $ 11.74 | ||||
| 8 | 74011456 | Liner, Door |
|
- | |||||
| 9 | 74011458 | Bracket, Glass (2) |
|
- | |||||
| 10 | 74003647 | Insulation, Door |
|
- | |||||
| 11 | WP90767 | Screw (Replaces: Y700502) |
|
Immediately | $ 8.25 | ||||
| 12 | 74011048 | Insulation, Foil |
|
$ 83.69 | |||||
| 13 | WP74010043 | Insulation, Door (Replaces: 74010043) |
|
$ 78.37 | |||||
| 14 | 74011049 | Shield, Door |
|
- | |||||
| 15 | WP74004224 | Tape, White (Replaces: 74004224) |
|
$ 12.29 | |||||
| 16 | 74010231 | Glass, Coated |
|
- | |||||
| 17 | 74003649 | Glass, Inner Clear |
|
- | |||||
| 18 | 74011050 | Retainer, Glass |
|
- | |||||
| 19 | WP74009029 | Gasket, Window (Replaces: 74009029) |
|
Immediately | $ 169.43 | ||||
| 20 | W10168886 | Tape, Protective |
|
- | |||||
| 21 | 7112P034-60 | Clip, Glass (2) |
|
- | |||||
| 22 | WPW10162384 | Seal, Door (Replaces: 7201P046-60) |
|
Immediately | $ 102.88 | ||||
| 23 | 74008318 | Handle, Door |
|
- | |||||
| 24 | 8303811 | Nameplate, Logo |
|
$ 29.09 |
