SELECT A DIAGRAM

01 - Top And Cabinet, Literature

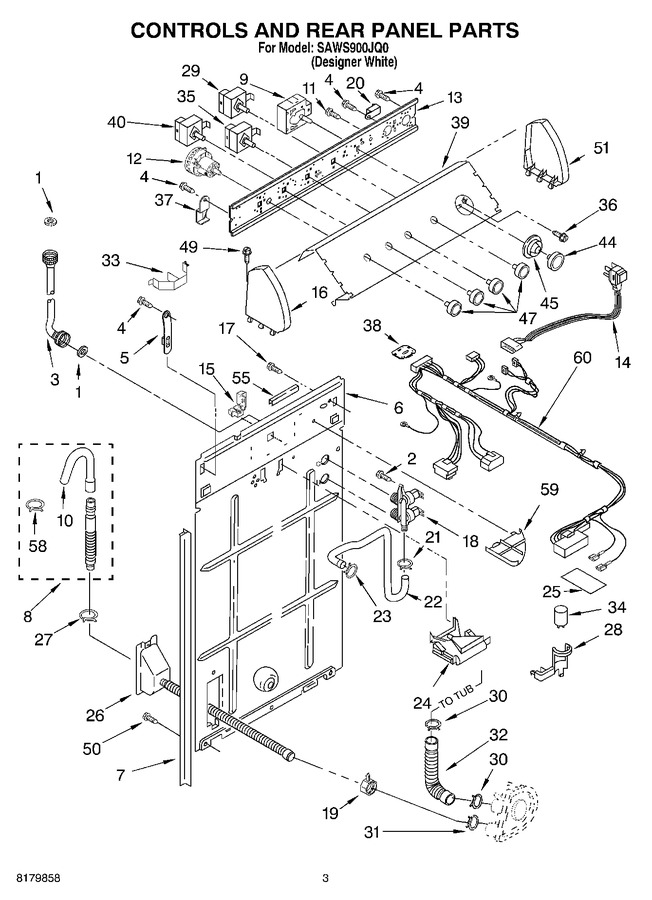

02 - Controls And Rear Panel


03 - Agitator, Basket And Tub


04 - Brake, Clutch, Gearcase, Motor And Pump


05 - Machine Base


06 - Wiring Harness


07 - Water System


08 - Brake And Drive Tube


09 - Gearcase


10 - Miscellaneous, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP16123		Washer, Water Inlet Hose (4) 1-1/16 X 5/8   (Replaces: 3976300)				$ 7.34
2	WP9740848		Screw   (Replaces: 9740848)			Immediately	$ 7.72
3	WP89503		Hose, Water Inlet (2) ((red Coupler))   (Replaces: 3949375)			Immediately	$ 21.68
3	WP89503		Hose, Water Inlet (2) ((blue Coupler))   (Replaces: 3949374)			Immediately	$ 21.68
4	WP90767		Screw, 8-18 X 3/8   (Replaces: 90767)			Immediately	$ 7.43
5	WP8568314		Strap, Console (2)   (Replaces: 8318255)				$ 7.35
6	3357978		Panel, Rear		Appelez-nous	-
7	WP62747		Pad, Rear Panel   (Replaces: 62747)				$ 24.81
8	285666		Hose, Drain (9 Ft.) (not Included)   (Replaces: 661577)			Immediately	$ 98.08
8	285664		Hose, Drain (4 Ft.)   (Replaces: 3951609)			Immediately	$ 37.88
8	285702		Extension, Drain Hose (21 Inches) (not Included)   (Replaces: 3357090)			Immediately	$ 57.55
9	3955501		Timer, Control (60 Hz.) (motor Not A Service Part)				$ 159.21
10	WP3357027		Nozzle-drain Hose   (Replaces: 3357027)				$ 88.07
11	3400073		Screw, Ground		Appelez-nous	-
12	8528337		Switch, Water Level		Appelez-nous	-
13	WP3948608		Bracket, Control   (Replaces: 3948608)				$ 109.80
14	W10820044		Cord, Power   (Replaces: 3948063)				$ 134.88
15	3952821		Strain Relief, Power Cord		Appelez-nous	-
16	279960		Cap, End (l.h.)   (Replaces: 8274437)				$ 78.81
17	WP3351614		Screw   (Replaces: 3351614)			Immediately	$ 6.57
18	WP3979346		Valve, Water Inlet & Thermistor Assy.   (Replaces: 3979346)			Immediately	$ 81.11
19	3976395		Clamp, Hose				$ 11.96
20	WP694419		Buzzer, Mini   (Replaces: 694419)				$ 120.65
21	WP596669		Clamp, Hose   (Replaces: 370451)			Immediately	$ 7.94
22	WP8317926		Hose, Vacuum Break   (Replaces: 8317926)			Immediately	$ 22.38
23	WP596669		Clamp, Hose   (Replaces: 371503)			Immediately	$ 7.94
24	WP3360977		Break, Vacuum   (Replaces: 387606)			Immediately	$ 45.41
25	3976286		Shield, Capacitor		Appelez-nous	-
26	WPW10358149		Drain Hose Assembly   (Replaces: 8317940)			Immediately	$ 43.34
27	WP356138		Clamp, Hose   (Replaces: 3366912)			Immediately	$ 7.67
28	8318201		Clip, Capacitor		Appelez-nous	-
29	W10168264		Switch, Cycle   (Replaces: 3950356)				$ 119.39
30	WP616099		Clamp, Hose   (Replaces: 3363366)			Immediately	$ 7.72
31	WP285655		Clamp, Hose   (Replaces: 8317496)			Immediately	$ 7.93
32	285871		Hose, Pump To Tub (includes No.30)   (Replaces: 3951449)			Immediately	$ 26.09
33	8055003		Clip, Harness & Pressure Hose				$ 36.24
34	WP8572720		Capacitor, Motor Start   (Replaces: 661605)				$ 120.78
35	8532053		Switch, Cycle		Appelez-nous	-
36	WP3400064		Screw, Timer Mounting (2)   (Replaces: 3400064)				$ 6.57
37	8283343		Retainer, Harness		Appelez-nous	-
38	3955728		Control, Etc				$ 219.44
39	3956117		Panel, Console		Appelez-nous	-
40	WPW10168257		Switch, Water Temperature   (Replaces: 3949180)				$ 126.00
44	WP3364293		Knob, Timer   (Replaces: 3364291)			Immediately	$ 56.18
45	WP3957841		Dial, Timer   (Replaces: 3950762)				$ 42.86
47	WP3957796		Knob, Control   (Replaces: 3950759)			Immediately	$ 51.81
49	WP388326		Screw, 8-18 X 1.25 (panel To Top)   (Replaces: 388326)				$ 8.36
50	WP3390631		Screw, 10-16 X 3/8   (Replaces: 62863)				$ 7.43
51	279960		Cap, End (r.h.)   (Replaces: 8274434)				$ 78.81
55	303294		Edge Protector		Appelez-nous	-
58	WP3357331		Clamp, Drain Hose   (Replaces: 3366913)				$ 7.37
59	3348424		Shield, Suds		Appelez-nous	-
60	3956124		Harness, Wiring		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
