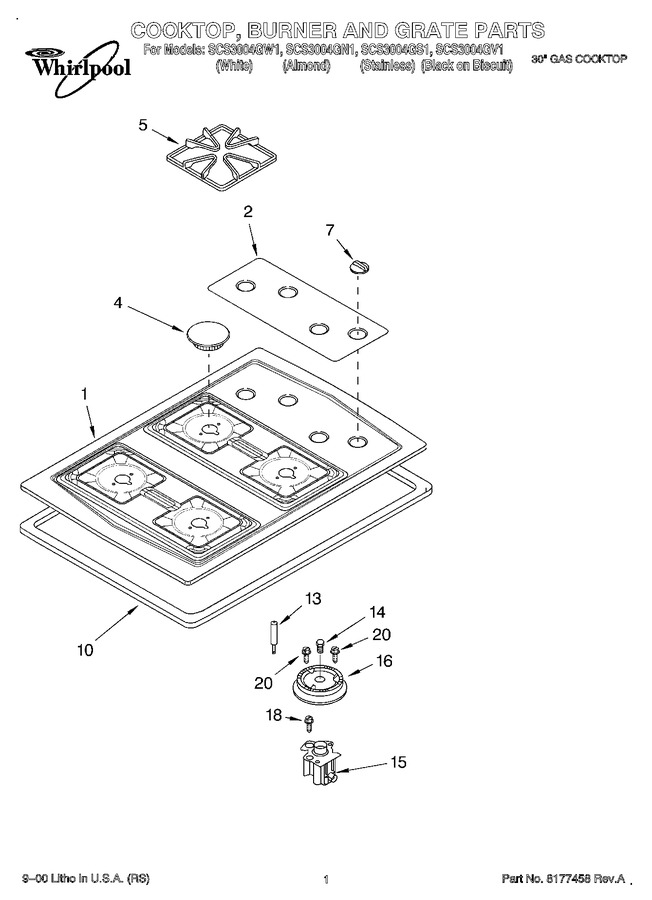

01 - Cooktop, Burner And Grate


02 - Burner Box, Gas Valves, And Switches


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3191242		Cooktop (black)   (Replaces: 3191242)				$ 284.48
1	WP3191243		Cooktop (white)   (Replaces: 3191243)				$ 293.92
1	3191244		Cooktop (almond)		Appelez-nous	-
1	W11230936		Cooktop (stainless)   (Replaces: 3191288)				$ 396.01
1	8284705		Cooktop (black On Biscuit)		Appelez-nous	-
2	3191284		Panel, Control (white)		Appelez-nous	-
2	3191285		Panel, Control (almond)		Appelez-nous	-
2	3191283		Panel, Control (black)		Appelez-nous	-
4	WP3191898		Cap, Burner (rf)   (Replaces: 3191898)				$ 63.90
4	WP3191901		Cap, Burner (rr, Lf, Lr)   (Replaces: 3191901)				$ 116.02
5	WPW10268483		Grate (4)   (Replaces: 8053458)				$ 126.02
7	WP3191328		Knob, Control (4)   (Replaces: 3191328)			Immediately	$ 21.10
10	3193090		Seal, Foam		Appelez-nous	-
13	WP9754215		Ignitor   (Replaces: 9754215)			Immediately	$ 49.46
14	WP9753930		Orifice (lf)   (Replaces: 3192524)				$ 84.20
14	WP3192523		Orifice (lr, Rr)   (Replaces: 3192523)				$ 84.20
14	3192528		Orifice (rf)		Appelez-nous	-
15	9754186		Holder, Orifice (includes 13 & 14) (lr, Rr, Lf 9k)		Appelez-nous	-
15	9754182		Holder, Orifice (includes 13 & 14) (rf 6k)		Appelez-nous	-
16	8273216		Head, Burner (rf)		Appelez-nous	-
16	WP4455980		Head, Burner (lr, Rr, Lf)   (Replaces: 8273215)				$ 58.69
18	WP4449809		Screw   (Replaces: 4449809)			Immediately	$ 6.80
20	3192229		Harness, Wire Ignitor (15``)		Appelez-nous	-
20	WP3368921		Screw   (Replaces: 3368921)			Immediately	$ 7.70
20	3192230		Harness, Wire Ignitor (28``)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
