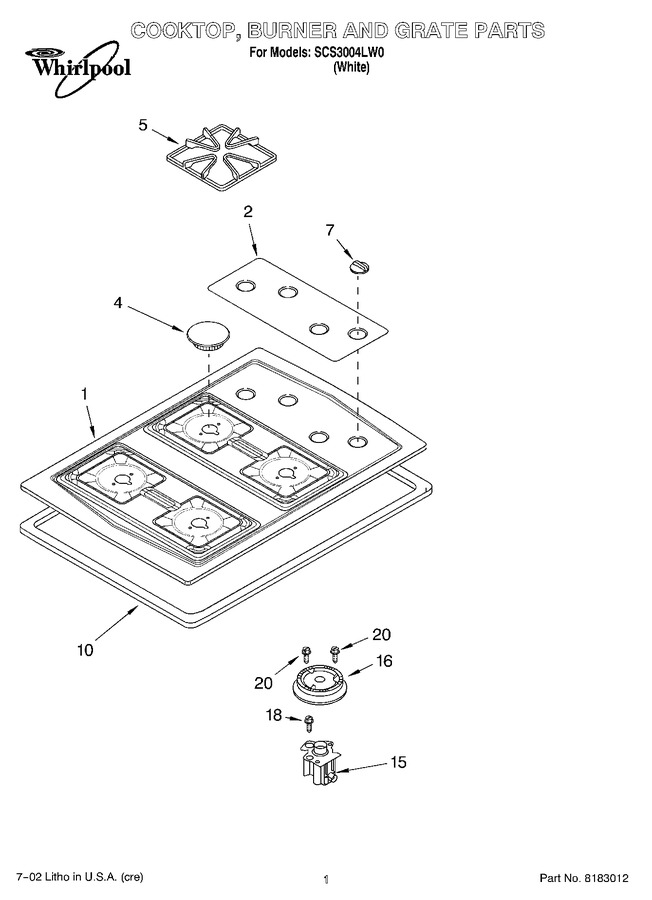

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop, Burner And Grate
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3191243 | Cooktop (Replaces: 3191243) |
|
$ 293.92 | |||||
| 2 | 8285090 | Panel, Control |
|
- | |||||
| 4 | WP3191901 | Cap, Burner (rr, Lf, Lr) (Replaces: 3191901) |
|
$ 116.02 | |||||
| 4 | WP3191898 | Cap, Burner (rf) (Replaces: 3191898) |
|
$ 63.90 | |||||
| 5 | WPW10268483 | Grate (4) (Replaces: 8053458) |
|
$ 126.02 | |||||
| 7 | 8285068 | Knob, Control (4) |
|
$ 39.24 | |||||
| 10 | 3193090 | Seal, Foam |
|
- | |||||
| 15 | 9754182 | Holder, Orifice (includes 13 & 14) (rf 6k) |
|
- | |||||
| 15 | 9754186 | Holder, Orifice (includes 13 & 14) (lr, Rr, Lf 9k) |
|
- | |||||
| 16 | WP4455980 | Head, Burner (lr, Rr, Lf) (Replaces: 4455980) |
|
$ 58.69 | |||||
| 16 | 4455979 | Head, Burner (rf) |
|
$ 28.52 | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.80 | ||||
| 20 | 3192230 | Harness, Wire Ignitor (28``) |
|
- | |||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 7.70 | ||||
| 20 | 3192229 | Harness, Wire Ignitor (15``) |
|
- |
