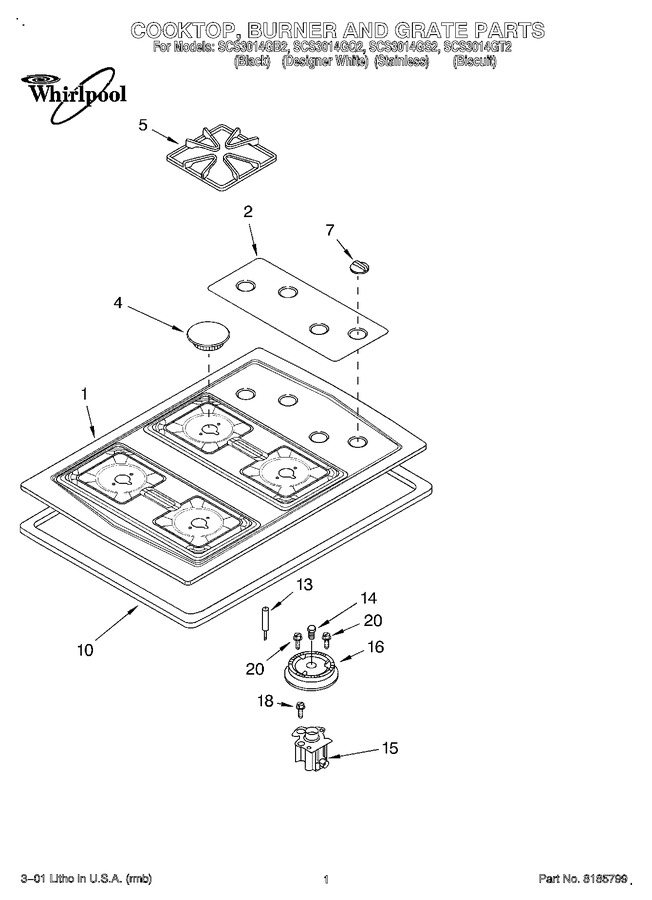

01 - Cooktop, Burner And Grate
02 - Burner Box, Gas Valves, And Switches
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3191242 | Cooktop (black) (Replaces: 3191242) |
|
$ 284.48 | |||||
| 1 | WP3191243 | Cooktop (white) (Replaces: 3191243) |
|
$ 293.92 | |||||
| 1 | W11230936 | Cooktop (stainless) (Replaces: 3191288) |
|
$ 396.01 | |||||
| 1 | 8284705 | Cooktop (biscuit) |
|
- | |||||
| 2 | 3191283 | Panel, Control (black) |
|
- | |||||
| 2 | 3191284 | Panel, Control (white) |
|
- | |||||
| 2 | 8284708 | Panel, Control (biscuit) |
|
- | |||||
| 4 | 3191899 | Cap, Burner 6k (1) (gray) |
|
$ 31.21 | |||||
| 4 | WP3191901 | Cap, Burner (9.5k) (2) (black) (Replaces: 3191901) |
|
$ 116.02 | |||||
| 4 | WP3191898 | Cap, Burner 6k (1) (black) (Replaces: 3191898) |
|
$ 63.90 | |||||
| 4 | WP3191905 | Cap, Burner (12.5k (1)) (gray) (Replaces: 3191905) |
|
$ 81.88 | |||||
| 4 | WP3191904 | Cap, Burner (12.5k (1)) (black) (Replaces: 3191904) |
|
$ 165.74 | |||||
| 4 | WP3191903 | Cap, Burner (9.5k (2)) (gray) (Replaces: 3191903) |
|
$ 172.35 | |||||
| 5 | WPW10447925 | Grate (4) (gray) (Replaces: 8053455) |
|
Immediately | $ 269.60 | ||||
| 5 | WP8053456 | Grate (4) (black) (Replaces: 8053456) |
|
$ 190.85 | |||||
| 7 | WP3191328 | Knob, Control (4) (white) (Replaces: 3191329) |
|
Immediately | $ 21.10 | ||||
| 7 | WP3191328 | Knob, Control (4) (biscuit) (Replaces: 3192595) |
|
Immediately | $ 21.10 | ||||
| 7 | WP3191328 | Knob, Control (4) (black) (Replaces: 3191328) |
|
Immediately | $ 21.10 | ||||
| 10 | 3193090 | Seal, Foam |
|
- | |||||
| 13 | WP9754215 | Ignitor (Replaces: 9754215) |
|
Immediately | $ 49.46 | ||||
| 14 | WP3192523 | Orifice (lr, Rr) (Replaces: 3192523) |
|
$ 84.20 | |||||
| 14 | 3192528 | Orifice (rf) |
|
- | |||||
| 14 | WP9753930 | Orifice (lf) (Replaces: 3192524) |
|
$ 84.20 | |||||
| 15 | 9754187 | Holder, Orifice (includes 13 & 14) (lf 12k) |
|
- | |||||
| 15 | 9754186 | Holder, Orifice (includes 13 & 14) (lr, Rr 9k) |
|
- | |||||
| 15 | 9754182 | Holder, Orifice (includes 13 & 14) (rf 6k) |
|
- | |||||
| 16 | WP4455981 | Head, Burner (lf) (Replaces: 8273214) |
|
Immediately | $ 82.71 | ||||
| 16 | WP4455980 | Head, Burner (lr, Rr) (Replaces: 8273215) |
|
$ 58.69 | |||||
| 16 | 8273216 | Head, Burner (rf) |
|
- | |||||
| 18 | WP4449809 | Screw (Replaces: 4449809) |
|
Immediately | $ 6.80 | ||||
| 20 | 3192230 | Harness, Wire Ignitor (28``) |
|
- | |||||
| 20 | WP3368921 | Screw (Replaces: 3368921) |
|
Immediately | $ 7.70 | ||||
| 20 | 3192229 | Harness, Wire Ignitor (15``) |
|
- |
