SELECT A DIAGRAM

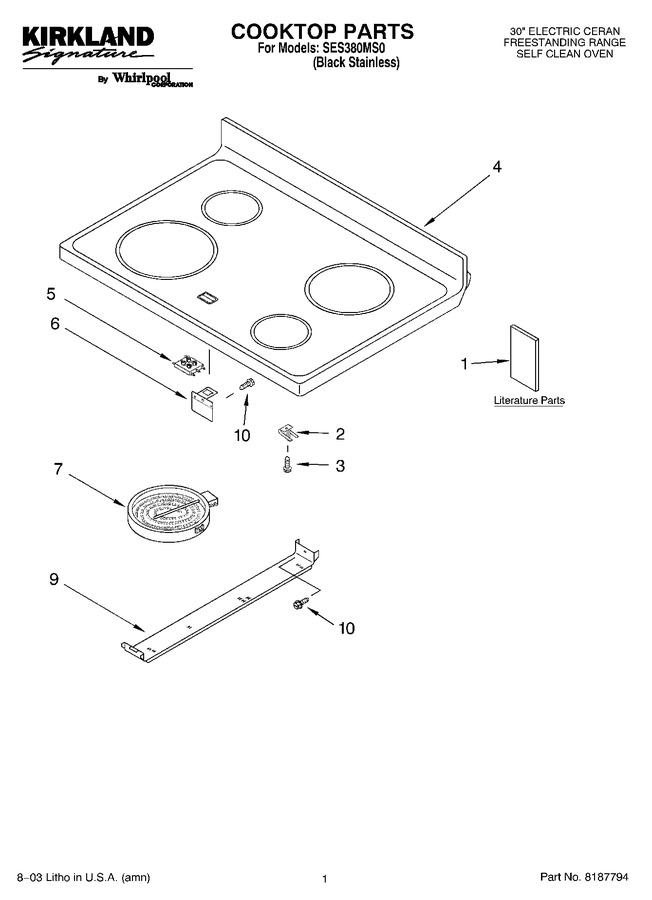

01 - Cooktop Parts


02 - Control Panel Parts


03 - Chassis Parts


04 - Drawer & Broiler Parts


05 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT9756096		Literature Parts (instructions, Installation)		Appelez-nous	-
1	LIT8523048		Literature Parts (installation Instructions (templet))		Appelez-nous	-
1	LIT9756097		Guide, Use & Care		Appelez-nous	-
1	LIT4454082		Literature Parts (tech Sheet)		Appelez-nous	-
1	LIT3191638		Safer Cooking Tips		Appelez-nous	-
2	3149191		Spring, Locator				$ 9.45
3	WP3196170		Screw   (Replaces: 3196170)				$ 6.80
4	9755821		Cooktop		Appelez-nous	-
5	8523739		Light, Indicator (hot Surface)				$ 120.71
6	8523741		Bracket, Ind Light		Appelez-nous	-
7	WP8273993		Element, Surface (1800 W - Rr)   (Replaces: 8273993)			Immediately	$ 258.96
7	W11047722		Element, Surface (2500 W - Lf)   (Replaces: 8273992)			Immediately	$ 119.21
7	W11171119		Element, Surface (1200 W - Rf)   (Replaces: 8273994)			Immediately	$ 203.06
9	3196455		Bracket, Element		Appelez-nous	-
10	WP3196557		Screw   (Replaces: 3196169)			Immediately	$ 7.16

    View Diagram in Separate Window       Print Part List
