SELECT A DIAGRAM

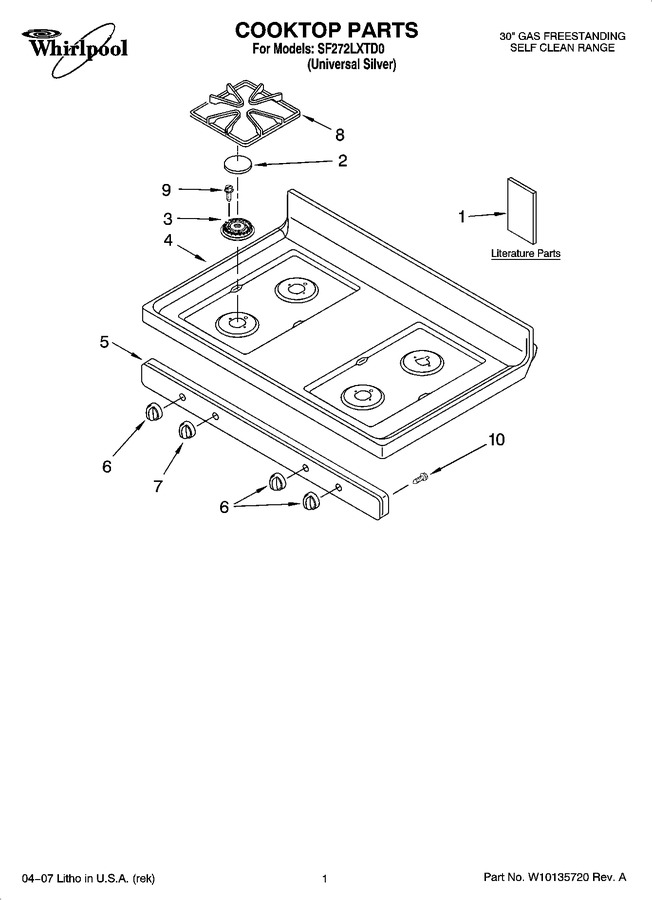

01 - Cooktop Parts


02 - Control Panel Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Door Parts


06 - Drawer & Broiler Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	9762998		Installation Instructions		Appelez-nous	-
1	9757142		Anti-tip Template (english/spanish)		Appelez-nous	-
1	9757143		Anti-tip Template (english/french)		Appelez-nous	-
1	W10110369		Owners Manual		Appelez-nous	-
1	9763044		Tech Sheet		Appelez-nous	-
1	9762761		Safer Cooking Tips		Appelez-nous	-
2	WP3191901		Cap, Burner (lr - Rf)   (Replaces: 3191901)				$ 116.02
2	WP3191898		Cap, Burner (right Rear)   (Replaces: 3191898)				$ 63.90
2	WP3191904		Cap, Burner (left Front)   (Replaces: 3191904)				$ 165.74
3	WP4455980		Burner (r. Front, L. Rear)   (Replaces: 4455980)				$ 58.69
3	4455979		Burner (right Rear)				$ 28.52
3	WP4455981		Burner (left Front)   (Replaces: 4455981)			Immediately	$ 82.71
4	8272253		Cooktop		Appelez-nous	-
5	8523855		Panel, Manifold				$ 158.56
6	WP8273103		Knob, Control (3)   (Replaces: 8273103)			Immediately	$ 15.17
7	WP8273103		Knob, Powerburner   (Replaces: 8273111)			Immediately	$ 15.17
8	WPW10268483		Grate, Burner (4)   (Replaces: 8053458)				$ 126.02
9	WP3368921		Screw   (Replaces: 3400701)			Immediately	$ 7.70
10	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16
