01 - Cooktop
02 - Backguard
03 - Manifold
04 - Chassis
05 - Oven & Broiler
06 - Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 3186188 | Endcap (left Hand) |
|
- | |||||
| 1 | 3186189 | Endcap (right Hand) |
|
- | |||||
| 2 | 3186198 | Support, Endcap (left Hand) |
|
- | |||||
| 2 | 3186199 | Support, Endcap (right Hand) |
|
- | |||||

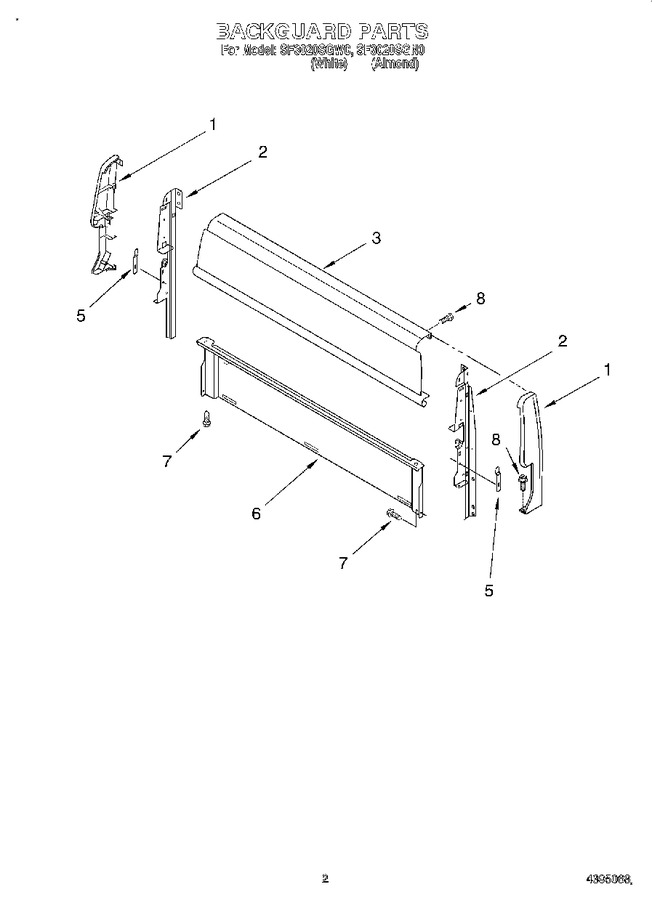

| 3 | 3195768 | Panel, Backguard |
|
- | |||||
| 5 | 3196200 | Clip, Spring (2) |
|
$ 9.41 | |||||
| 6 | 3186187 | Shield, Heat |
|
- | |||||
| 7 | W10276642 | Screw (Replaces: 4449746) |
|
$ 5.77 | |||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 |
