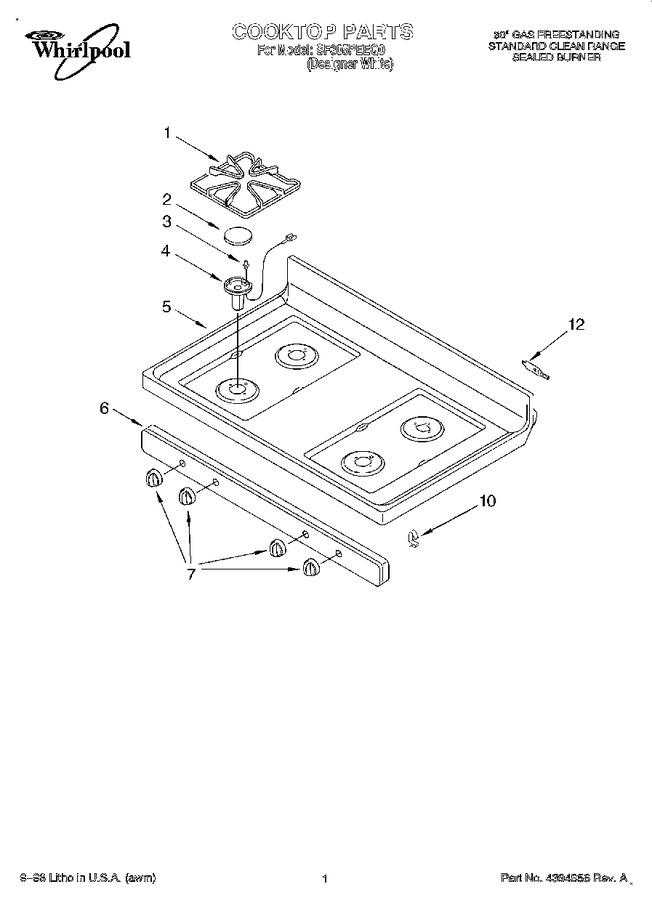

01 - Cooktop


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Broiler


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3195997		Grate, Burner (4)		Appelez-nous	-
2	3196616		Cap, Burner (large (3))		Appelez-nous	-
2	3196613		Cap, Burner (small (1))		Appelez-nous	-
3	W11032529		Igniter, Burner (right Rear)   (Replaces: 3186486)				$ 67.71
3	W11032529		Igniter, Burner (left Rear)   (Replaces: 3186480)				$ 67.71
3	W11032529		Igniter, Burner (right Front)   (Replaces: 3186482)				$ 67.71
3	W11032529		Igniter, Burner (left Front)   (Replaces: 3186479)				$ 67.71
4	WPW10132940		Screw (8)   (Replaces: 3196184)				$ 9.11
4	3186478		Burner, 6,500 Btu (rr)				$ 77.59
4	WP8053360		Burner, 9,500 Btu (lf, Lr, Rf)   (Replaces: 3186397)				$ 90.95
5	3186014		Cooktop		Appelez-nous	-
6	WP8523854		Panel, Manifold   (Replaces: 3186006)				$ 261.52
6	WP3196557		Screw (3)   (Replaces: 3196557)			Immediately	$ 7.16
7	WP3186135		Knob, Control (4)   (Replaces: 3186135)				$ 22.93
10	3195813		Clip, Cooktop (2)		Appelez-nous	-
12	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 13.25
12	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 11.86

    View Diagram in Separate Window       Print Part List
