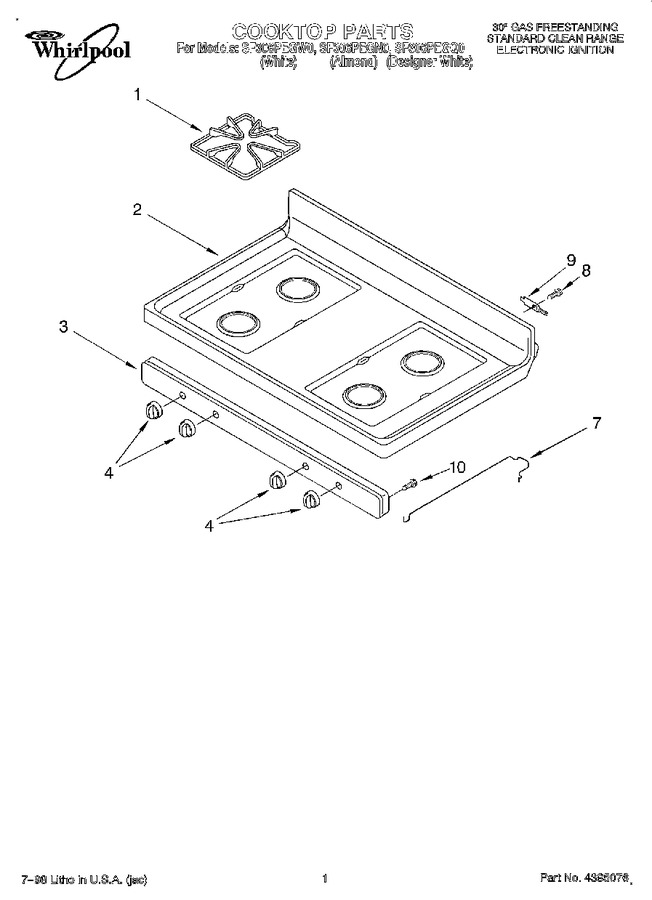

01 - Cooktop
02 - Control Panel
03 - Manifold
04 - Chassis
05 - Oven & Broiler
06 - Door, Lit/optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10268483 | Grate, Burner (4) (black) (Replaces: 8053458) |
|
$ 126.02 | |||||
| 1 | 8053391 | Grate, Burner (4) (grey) |
|
$ 242.28 | |||||
| 2 | 3186031 | Cooktop (almond) |
|
- | |||||
| 2 | 3186030 | Cooktop (white) |
|
- | |||||
| 3 | 8523855 | Panel, Manifold (Replaces: 3186018) |
|
$ 158.56 | |||||
| 4 | 3186134 | Knob, Burner (4) (black) |
|
$ 18.90 | |||||
| 4 | WP3186135 | Knob, Burner (4) (white) (Replaces: 3186135) |
|
$ 22.93 | |||||
| 7 | WP3195812 | Rod, Support (2) (Replaces: 3195812) |
|
Immediately | $ 7.86 | ||||
| 8 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 13.25 | ||||
| 9 | WP3195060 | Hinge, Cooktop (2) (Replaces: 3195060) |
|
Immediately | $ 11.86 | ||||
| 10 | WP3196557 | Screw (Replaces: 3196557) |
|
Immediately | $ 7.16 |
