SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Broiler


06 - Door, Lit/optional

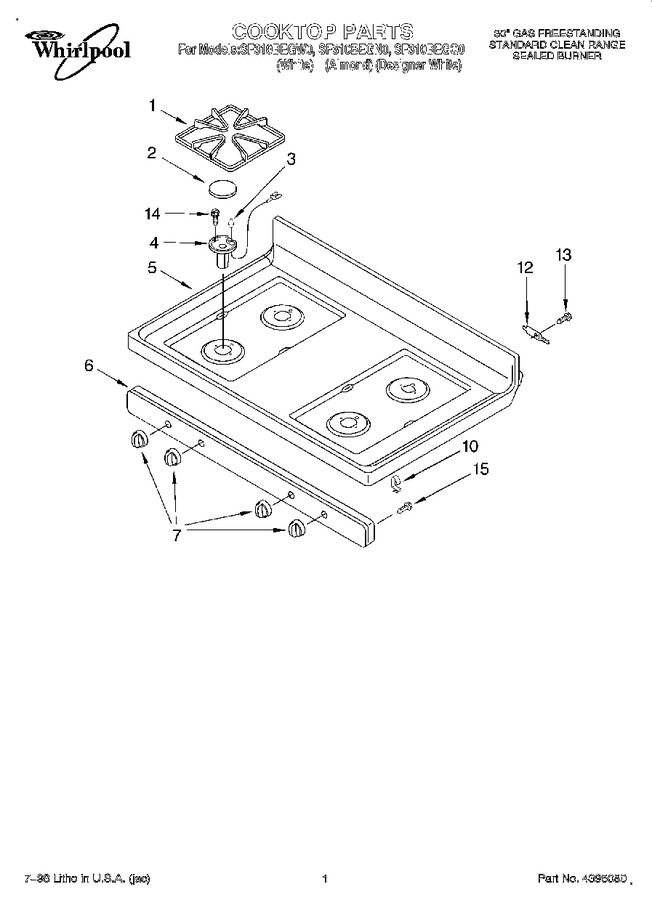

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8053391		Grate, Burner (4) (white)				$ 242.28
1	WPW10268483		Grate, Burner (4) (black)   (Replaces: 8053458)				$ 126.02
2	8053466		Cap, Burner (small (1) (black))		Appelez-nous	-
2	8053463		Cap, Burner (large (3) (black))				$ 43.95
2	8053465		Cap, Burner (large (3) (white))		Appelez-nous	-
2	8053468		Cap, Burner (small (1) (white))		Appelez-nous	-
3	W11032529		Ignitor, Burner (left Rear)   (Replaces: 8053717)				$ 67.71
3	W11032529		Ignitor, Burner (right Front)   (Replaces: 8053720)				$ 67.71
3	W11032529		Ignitor, Burner (right Rear)   (Replaces: 8053719)				$ 67.71
3	W11032529		Ignitor, Burner (left Front)   (Replaces: 8053718)				$ 67.71
4	3186478		Burner, 6,500 Btu (rr)				$ 77.59
4	WP8053360		Burner, 12500 Btu (lf, Lr, Rf)   (Replaces: 8053360)				$ 90.95
5	8053363		Cooktop (almond)		Appelez-nous	-
5	8053362		Cooktop (white)		Appelez-nous	-
6	8523855		Panel, Manifold (black)   (Replaces: 3186018)				$ 158.56
6	WP8523854		Panel, Manifold (white)   (Replaces: 3186006)				$ 261.52
7	3186134		Knob, Control (4) (black)				$ 18.90
7	WP3186135		Knob, Control (4) (white)   (Replaces: 3186135)				$ 22.93
10	3195813		Clip, Cooktop (2)		Appelez-nous	-
12	WP3195060		Hinge, Cooktop (2)   (Replaces: 3195060)			Immediately	$ 11.86
13	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
14	WP3400861		Screw   (Replaces: 3400856)				$ 7.90
15	WP3196557		Screw   (Replaces: 3196557)			Immediately	$ 7.16

    View Diagram in Separate Window       Print Part List
