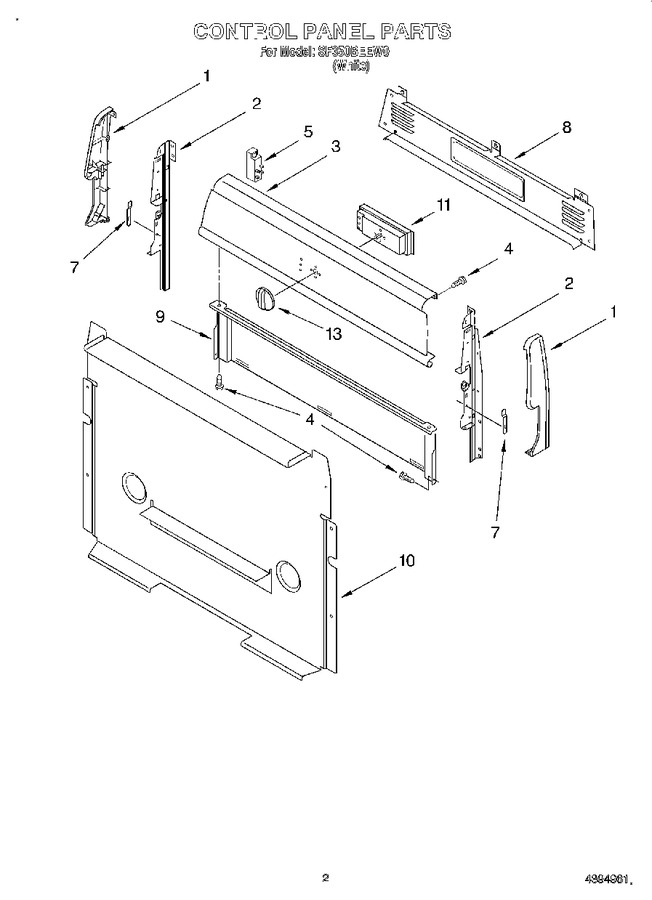

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186189		Endcap (right Hand)		Appelez-nous	-
1	3186188		Endcap (left Hand)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	3195771		Panel, Backguard		Appelez-nous	-
4	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 13.25
5	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 6.80
5	3196023		Module, Spark		Appelez-nous	-
7	3196200		Clip, Spring (2)				$ 9.41
8	W11233072		Screw (5)   (Replaces: 3196178)			Immediately	$ 13.25
8	3195963		Cover, Upper		Appelez-nous	-
9	3186187		Shield, Heat		Appelez-nous	-
9	W10276642		Screw (4)   (Replaces: 4449746)				$ 5.77
10	3195964		Cover, Lower		Appelez-nous	-
10	W11233072		Screw (6)   (Replaces: 3196178)			Immediately	$ 13.25
11	3196172		Screw (4)			Immediately	$ 12.12
11	3195185		Control, Oven		Appelez-nous	-
13	3196213		Knob, Thermostat		Appelez-nous	-
