SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Drawer & Broiler


06 - Door, Lit/optional

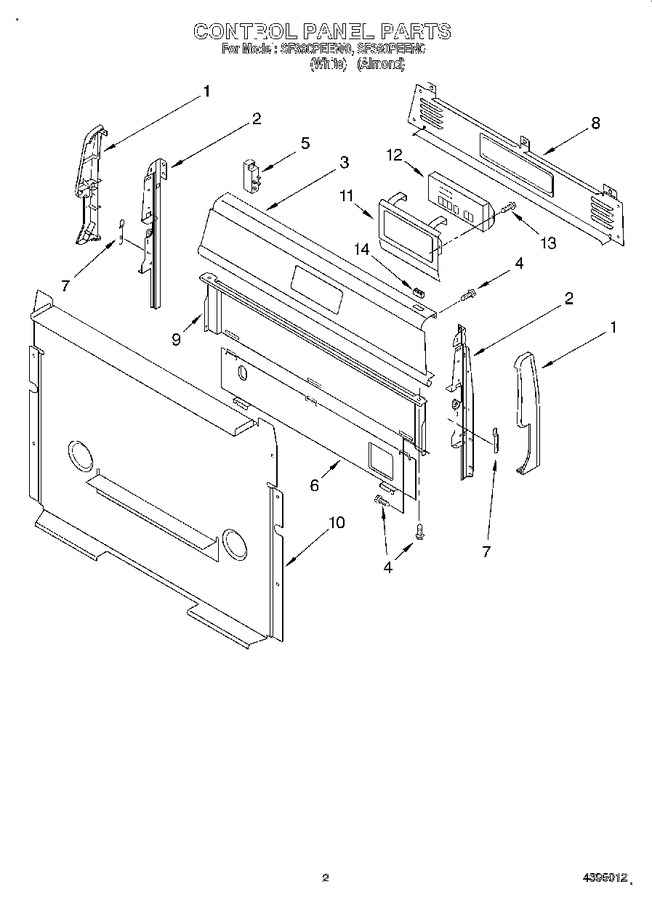

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186189		Endcap (right Hand)		Appelez-nous	-
1	3186188		Endcap (left Hand)		Appelez-nous	-
2	3186198		Support, Endcap (left Hand)		Appelez-nous	-
2	3186199		Support, Endcap (right Hand)		Appelez-nous	-
3	3195773		Panel, Backguard (includes No.11)		Appelez-nous	-
4	W10276642		Screw (4)   (Replaces: 4449746)				$ 5.77
5	WPY706189		Screw   (Replaces: 3196427)			Immediately	$ 6.80
5	WPW10110491		Module, Spark   (Replaces: 3186493)			Immediately	$ 290.17
6	8053505		Shield, Lower Heat   (Replaces: 3196135)				$ 149.30
6	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 13.25
7	3196200		Clip, Spring (2)				$ 9.41
8	W11233072		Screw (5)   (Replaces: 3196178)			Immediately	$ 13.25
8	3195963		Cover, Upper		Appelez-nous	-
9	3186187		Shield, Heat		Appelez-nous	-
10	W11233072		Screw (6)   (Replaces: 3196178)			Immediately	$ 13.25
10	3195964		Cover, Lower		Appelez-nous	-
11	3195823		Bracket, Control		Appelez-nous	-
12	3195122		Control, Range		Appelez-nous	-
13	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 13.25
14	WP4314961		Switch, Rocker   (Replaces: 3148564)				$ 84.56

    View Diagram in Separate Window       Print Part List
