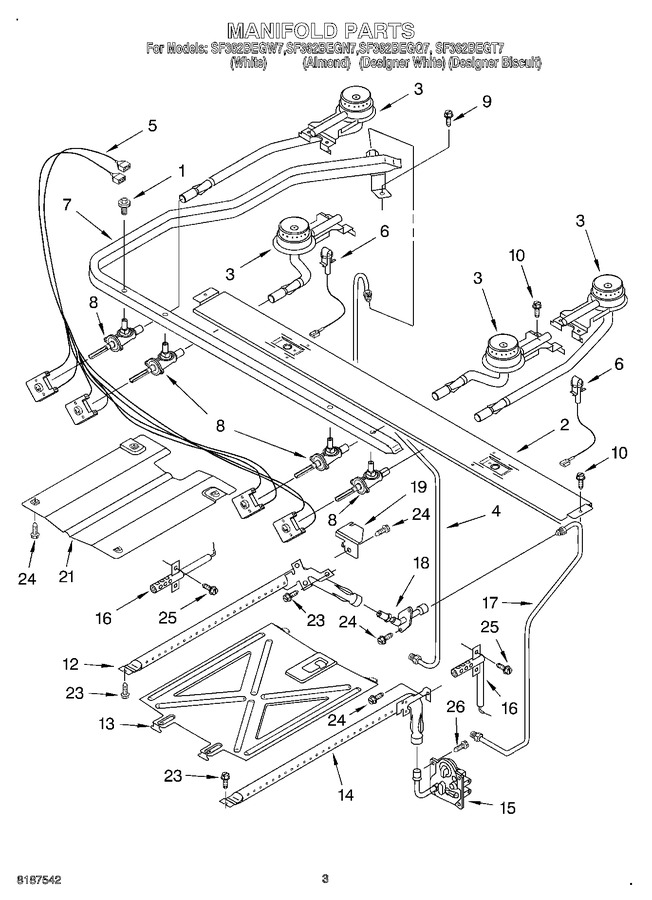

SELECT A DIAGRAM

01 - Cooktop, Literature


02 - Control Panel


03 - Manifold


04 - Chassis


05 - Drawer And Broiler


06 - Door, Optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3186217		Screw, Valve				$ 5.53
2	3186207		Support, Burner		Appelez-nous	-
3	3186209		Burner, Left Front		Appelez-nous	-
3	3186215		Burner (right Rear)		Appelez-nous	-
3	3186214		Burner (right Front)		Appelez-nous	-
3	3186213		Burner (left Rear)				$ 90.26
4	8273543		Tubing (manifold To Regulator)		Appelez-nous	-
5	8272948		Harness, Igniter (w/switches)		Appelez-nous	-
6	3186107		Ignitor, Surface (left)		Appelez-nous	-
6	3186108		Ignitor, Surface (left)		Appelez-nous	-
7	3186221		Pipe, Manifold		Appelez-nous	-
8	3196850		Valve (4)		Appelez-nous	-
9	W11233072		Screw   (Replaces: 3196178)			Immediately	$ 13.25
10	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
12	WP8054078		Burner, Broiler   (Replaces: 8054078)			Immediately	$ 215.42
13	8053970		Spreader, Flame (oven)		Appelez-nous	-
14	8190618		Burner, Bake   (Replaces: 8054077)				$ 187.71
15	WPW10293048		Valve, Gas   (Replaces: 8054079)			Immediately	$ 418.31
16	WP8054129		Igniter (broil)   (Replaces: 8054129)			Immediately	$ 123.43
16	8190618		Igniter (bake)   (Replaces: 8054130)				$ 187.71
17	8272222		Tubing (broiler Fitting To Valve)				$ 97.58
18	3186489		Fitting, Broiler				$ 64.58
19	8272403		Cover, Igniter		Appelez-nous	-
21	W10137062		Spreader, Flame (broiler)   (Replaces: 8053262)		Appelez-nous	-
23	3196265		Screw		Appelez-nous	-
24	W11233072		Screw   (Replaces: 3196176)			Immediately	$ 13.25
25	W11684507		Screw   (Replaces: 3196385)				$ 12.84
26	3196471		Spuds, Lp Gas (kit Of 4)		Appelez-nous	-
26	WP3400016		Screw   (Replaces: 3400016)				$ 7.55
26	814391		Spuds, Natural Gas (kit Of 4)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
