SELECT A DIAGRAM

Diagram for 01 - Cooktop Parts
01 - Cooktop Parts

Diagram for 02 - Control Panel Parts
02 - Control Panel Parts

Diagram for 03 - Manifold Parts
03 - Manifold Parts

Diagram for 04 - Chassis Parts
04 - Chassis Parts

Diagram for 05 - Drawer & Broiler Parts
05 - Drawer & Broiler Parts

Diagram for 06 - Door Parts, Optional Parts
06 - Door Parts, Optional Parts


New Model Search:


1-844-510-2000
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 W10016450 Trim, Top (biscuit) Special Order $ 81.21

1 W10016420 Trim, Top (stainless) Appelez-nous -
1 W10016370 Trim, Top (white) Special Order $ 79.85

2 WP3196164 Screw   (Replaces: 3196164) In-Stock Immediately $ 9.93

3 WPW10202217 Handle, Door (black)   (Replaces: 3195922) Special Order $ 243.59

3 WPW10202216 Handle, Door (white)   (Replaces: 8522444) Special Order $ 333.60

3 8522445 Handle, Door (biscuit) Appelez-nous -
4 WP9761344 Liner, Door   (Replaces: 9761344) In-Stock Immediately $ 335.60

6 WP8053948 Glass, Inner   (Replaces: 9758162) In-Stock Immediately $ 208.85

7 WPW10316950 Frame, Glass   (Replaces: 3186289) In-Stock Immediately $ 81.08

8 WPW10278991 Insulation, Door   (Replaces: 8272618) In-Stock Immediately $ 91.23

9 W11539580 Retainer, Insul.   (Replaces: 9761357) Special Order $ 209.98

10 W10347466 Hinge, Door   (Replaces: 9761493) In-Stock Immediately $ 197.86

11 9756435 Glass, Outer Door (stainless) Appelez-nous -
11 WPW10118454 Glass, Outer Door (white)   (Replaces: 9756415) Special Order $ 292.42

11 9756416 Glass, Outer Door (biscuit) Appelez-nous -
12 WP8523167 Trim, Door Side Right Hand (biscuit)   (Replaces: 8523167) Special Order $ 107.19

12 WP8523172 Trim, Door Side Left Hand (white)   (Replaces: 8523172) In-Stock Immediately $ 62.94

12 W10761014 Trim, Door Side Right Hand (black)   (Replaces: 8523165) In-Stock Immediately $ 65.66

12 WP8523173 Trim, Door Side Left Hand (biscuit)   (Replaces: 8523173) Special Order $ 111.18

12 WP8523166 Trim, Door Side Right Hand (white)   (Replaces: 8523166) In-Stock Immediately $ 75.81

12 W10761018 Trim, Door Side Left Hand (black)   (Replaces: 8523171) In-Stock Immediately $ 49.32

13 W10491985 Screw   (Replaces: 3196160) In-Stock Immediately $ 6.80

14 WP8523178 Trim, Bottom (biscuit)   (Replaces: 8523178) Special Order $ 145.59

14 WP8523180 Trim, Bottom (stainless)   (Replaces: 8523180) Special Order $ 152.10

14 W11594186 Trim, Bottom (white)   (Replaces: 8523175) In-Stock Immediately $ 55.23

17 3196025 Clip, Door Glass Special Order $ 20.10

18 3196794 Bracket, Window (2) Special Order $ 24.34

19 WP3196175 Screw   (Replaces: 3196165) In-Stock Immediately $ 6.80

21 9761517 Clip, Door Mntg (2) Special Order $ 43.30

22 W10777162 Screw   (Replaces: W10031780) In-Stock Immediately $ 7.43

814381 Pin Kit-dr Removal   (Replaces: 3196897) Special Order $ 10.15

350956 Paint, Pressurized Spray (12 Oz.) (almond) Special Order $ 48.61

261582 Grease Appelez-nous -
WP3195996 Grill, Broiler   (Replaces: 3195996) Special Order $ 88.79

WP3196076 Pan, Broiler   (Replaces: 3196076) Special Order $ 297.32

WPW10208653 Insulation, Fiberglass (1-1/2`` X 24`` X 120``)   (Replaces: 261514) In-Stock Immediately $ 52.37

WPW10208653 Insulation, Fiberglass (2-1/2`` X 22`` X 120``)   (Replaces: 240132) In-Stock Immediately $ 52.37

4392899 Paint, Touch-up (1/2oz.) (biscuit) In-Stock Immediately $ 24.99

511873 Paint, Touch-up 1/2 Oz. (white Porcelain) Special Order $ 46.58

350930 Paint, Pressurized Spray (12 Oz.) White In-Stock Immediately $ 36.11

285006 Paint, Pressurized Spray 12 Oz.) (superior Black) Special Order $ 53.90

350942 Paint, Pressurized Spray (12 Oz.) (primer, White)   (Replaces: 206922) Special Order $ 84.73

4392901 Paint, Pressurized Spray (12oz.) (biscuit) Appelez-nous -
799344 Paint, Bulk (1 Qt.) (white) (uncut) Special Order $ 237.46

978883 Paint, Bulk (1 Qt.) (almond (uncut)) Appelez-nous -
4392900 Paint, Bulk (1 Qt.) (biscuit) (uncut) Appelez-nous -
241430 Foil, Aluminum Oven (18`` X 25`) Special Order $ 20.65

W11839019 Anti-tip Kit   (Replaces: W10017440) In-Stock Immediately $ 25.69

9758205 Harness, Main Appelez-nous -
8523599 Harness, Cooktop Special Order $ 131.91

8524207 Harness, Wire Bake - Broil Special Order $ 52.99

3400964 Clip, Wire   (Replaces: 3196520) Special Order $ 80.10

72017 Paint, Touch-up 1/2 Oz. (white) In-Stock Immediately $ 11.07

3196896 Clip-wire Appelez-nous -
3195927 Tie,wire Appelez-nous -
16515 Clip, Harness   (Replaces: 313438) Special Order $ 18.48

W11244557 Screw   (Replaces: 3196173) Special Order $ 12.86

3196696 Clip, Harness Appelez-nous -
N/A Miscellaneous Appelez-nous -
242828 Wire (12 Ga. 150 C Black) Appelez-nous -
242821 Wire (14 Ga. 150 C Blue) Appelez-nous -
242822 Wire (14 Ga. 150 C Brown) Appelez-nous -
242830 Wire (14 Ga. 200 C Brown) Appelez-nous -
WP72107 Paint, Touch-up (1/2oz.) (almond)   (Replaces: 72107) Special Order $ 16.93

242823 Wire (14 Ga. 150 C Green) Appelez-nous -
242824 Wire (14 Ga. 150 C Orange) Appelez-nous -
242825 Wire (14 Ga. 150 C Red) Appelez-nous -
242831 Wire (14 Ga. 200 C Red) Special Order $ 342.23

242827 Wire (14 Ga. 150 C Yellow) Appelez-nous -
799832 Kit. Porcelain Repair (white) Appelez-nous -
8212471 Touch-up Self-clean(1/2 Pt)   (Replaces: 242756) In-Stock Immediately $ 78.50


    View Diagram in Separate Window     Print Icon   Print Part List

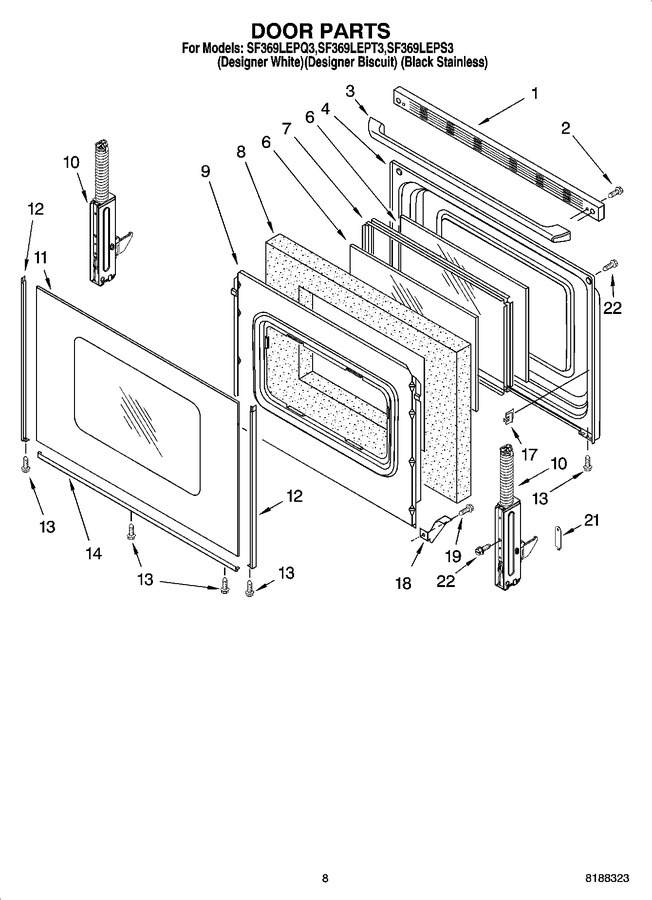

Diagram for SF369LEPS3
