SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Manifold

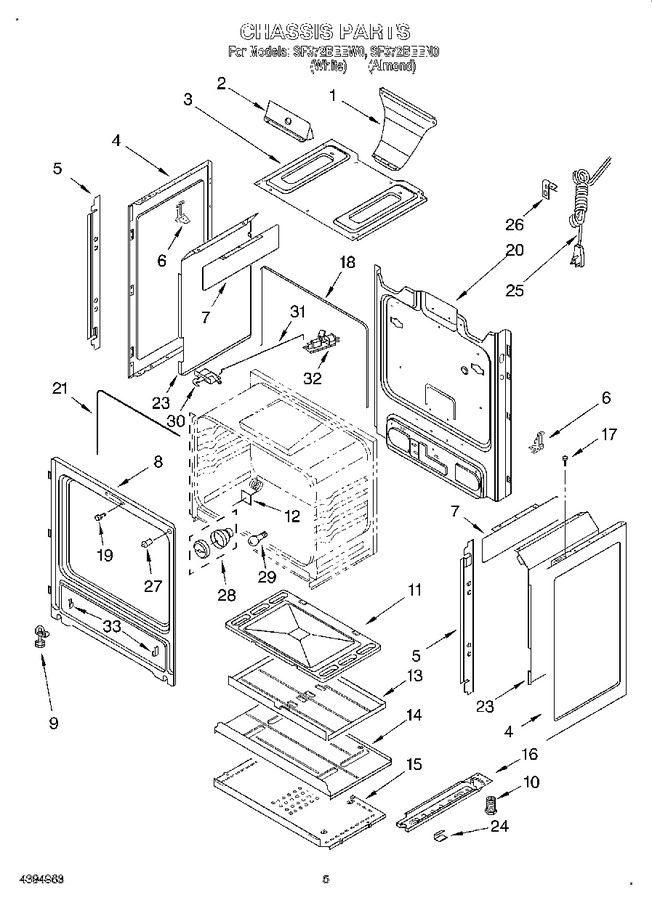

04 - Chassis


05 - Broiler


06 - Door, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WP3196557		Screw (3)   (Replaces: 3196537)			Immediately	$ 7.16
1	W11457094		Flue Box   (Replaces: 3195727)				$ 142.02
2	WP8272747		Shield, Flue   (Replaces: 3195826)				$ 67.06
2	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 13.25
3	W11233072		Screw (3)   (Replaces: 3196178)			Immediately	$ 13.25
3	W11379351		Burner Box   (Replaces: 3195033)				$ 57.77
4	3196166		Panel, Side (2) (screw (4))				$ 6.62
4	W11233072		Panel, Side (2) (screw (4))   (Replaces: 3196178)			Immediately	$ 13.25
4	3186074		Panel, Side (2) (almond)		Appelez-nous	-
4	3186073		Panel, Side (2) (white)		Appelez-nous	-
5	W11233072		Screw (4)   (Replaces: 3196178)			Immediately	$ 13.25
5	3196137		Sheild, Heat (2)		Appelez-nous	-
6	3186405		Brkt, Manifold Mtg (left Hand)		Appelez-nous	-
6	W11233072		Brkt, Manifold Mtg (screw (4))   (Replaces: 3196178)			Immediately	$ 13.25
6	3186406		Brkt, Manifold Mtg (right Hand)		Appelez-nous	-
7	3196136		Shield, Heat (2)		Appelez-nous	-
7	WP7101P246-60		Screw (4)   (Replaces: 3196177)				$ 7.42
8	W11233072		Screw (2)   (Replaces: 3196176)			Immediately	$ 13.25
8	3186183		Frame, Front		Appelez-nous	-
9	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 13.25
9	WP3196037		Foot, Front (2)   (Replaces: 3196037)				$ 78.41
10	WPW10058460		Foot, Rear (2)   (Replaces: 312701)			Immediately	$ 7.42
11	W11730226		Bottom, Oven   (Replaces: 3195097)				$ 207.95
11	3196152		Screw (2)				$ 8.99
12	W11233072		Screw, (2)   (Replaces: 3196178)			Immediately	$ 13.25
12	3148440		Sensor, Oven		Appelez-nous	-
13	W11233072		Screw (6)   (Replaces: 3196176)			Immediately	$ 13.25
13	8053967		Baffle, Burner   (Replaces: 3195370)				$ 284.36
14	WP7101P246-60		Screw (4)   (Replaces: 3196177)				$ 7.42
14	8053969		Shield, Heat   (Replaces: 3195402)				$ 101.74
15	W11233072		Screw (6)   (Replaces: 3196178)			Immediately	$ 13.25
15	8053968		Shield, Lower   (Replaces: 3195373)		Appelez-nous	-
16	W10491985		Screw (3)   (Replaces: 3196160)			Immediately	$ 6.80
16	W11818353		Rail, Base (2)   (Replaces: 3186055)				$ 56.39
17	238614		Bumper (2)   (Replaces: 3195809)				$ 76.31
18	3195737		Seal, Oven Flange		Appelez-nous	-
19	W10877054		Spacer, Door   (Replaces: 3196392)			Immediately	$ 50.45
20	W11233072		Screw (6)   (Replaces: 3196178)			Immediately	$ 13.25
20	3186117		Back, Main		Appelez-nous	-
21	W11542153		Seal, Oven   (Replaces: 3195023)			Immediately	$ 45.18
23	3195726		Retainer, Insul. (right Hand)		Appelez-nous	-
23	3196523		Retainer, Insul. (left Hand)		Appelez-nous	-
23	W11233072		Retainer, Insul. (screw (8))   (Replaces: 3196178)			Immediately	$ 13.25
24	3196576		Clip, Panel (6)		Appelez-nous	-
25	W11582239		Cord, Power   (Replaces: 3196260)				$ 15.83
26	549193		Clamp, Cord   (Replaces: 3196256)				$ 12.65
26	W11244557		Screw (2)   (Replaces: 3196173)				$ 12.86
27	3195993		Switch, Door				$ 63.13
28	W11594027		Light Socket Assy   (Replaces: 3150505)			Immediately	$ 78.31
29	8009		Bulb, Oven Light   (Replaces: 311255)			Immediately	$ 16.80
30	WP3400832		Screw (2)   (Replaces: 3196168)			Immediately	$ 7.36
30	WP9761013		Latch, Door   (Replaces: 3196119)				$ 230.72
31	3196118		Rod, Latch		Appelez-nous	-
32	W10491985		Screw   (Replaces: 3196160)			Immediately	$ 6.80
32	3196113		Solenoid, Latch		Appelez-nous	-
33	3195927		Tie, Insulation		Appelez-nous	-
33	W11688737		Insulation, Back   (Replaces: 3195991)				$ 110.46
33	WP3195546		Glide, Front (2)   (Replaces: 3195546)			Immediately	$ 7.50
33	WP3196175		Screw (2)   (Replaces: 3196165)			Immediately	$ 6.80
33	WPW10208653		Insulation, Wrap   (Replaces: 3195037)			Immediately	$ 52.37
