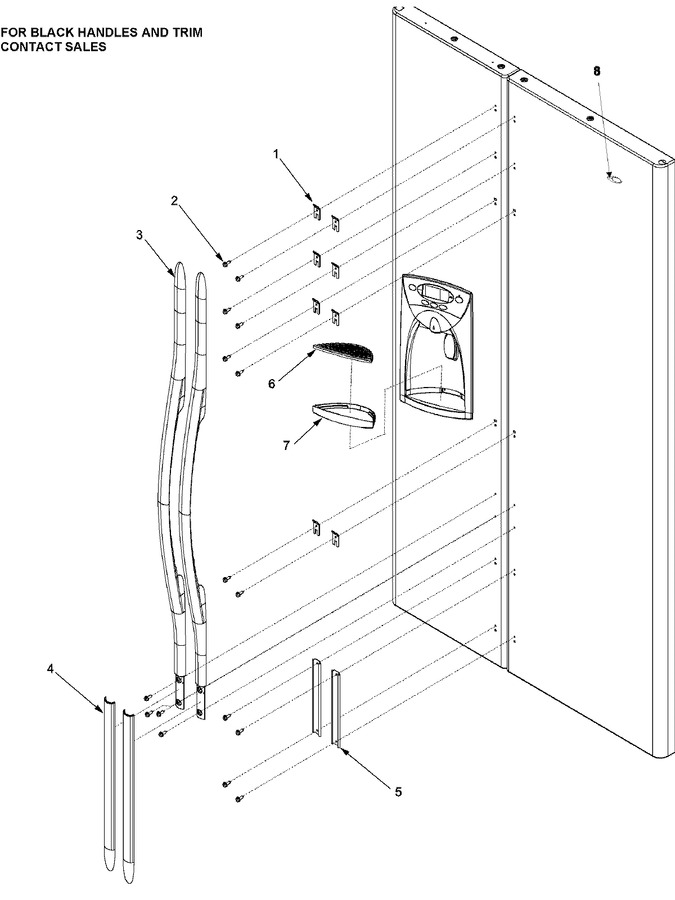

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12576403		Clip, Door Handle	10	Appelez-nous	-
2	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
3	67001890		Handle, Door (wht)	10	Appelez-nous	-
4	12575901W		Trim, Handle (wht)	10	Appelez-nous	-
5	12273808		Retainer, Trim	10	Appelez-nous	-
6	67002259		Grille, Sump (wht)	10			$ 5.51
7	67003054		Tray, Sump	10	Appelez-nous	-
7	67002260		Tray, Sump (wht)	10	Appelez-nous	-
8	Y12528501		Nameplate (amana Plus)	10		Immediately	$ 62.74
