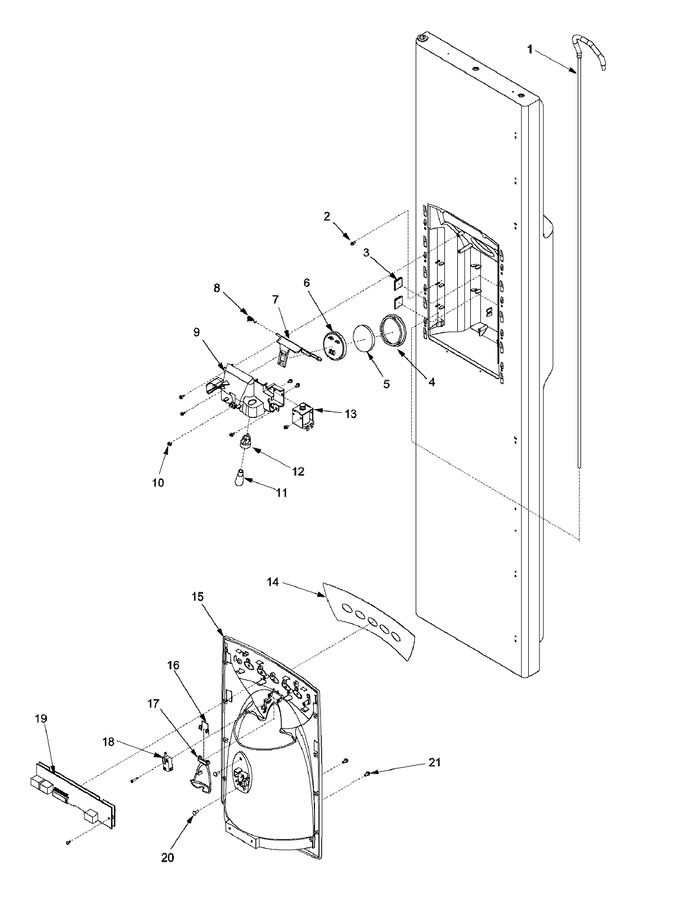

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67004938		Assy, Waterline   (Replaces: 12615503)	10			$ 139.23
2	W10833902		Clamp, Tube   (Replaces: M0108105)	10			$ 11.54
3	M0104102		Clip, Cord	10			$ 8.10
4	12665101		Seal, Ice Chute	10			$ 5.84
5	12563401		Insul, Chute Doorxx	10	Appelez-nous	-
6	12562701		Door, Ice Chute	10			$ 5.84
7	12563201		Hinge, Ice Chute	10	Appelez-nous	-
8	WP12565502		Spring, Chute Dr   (Replaces: 12565502)	10			$ 8.43
9	67006425		Screw, Sm   (Replaces: M0238642)	10		Immediately	$ 7.30
9	67001265		Extension, Ice Chute	10	Appelez-nous	-
10	67002816		Clip, Waterline	10			$ 19.15
11	M0360003		Bulb, Light	10	Appelez-nous	-
12	12617501		Socket, Light	10	Appelez-nous	-
13	67002170		Solenoid	10	Appelez-nous	-
13	WP488234		Screw, Mach   (Replaces: M0200314)	10			$ 7.08
14	67001120		Insert, Facade (wht)	10	Appelez-nous	-
14	67002261		Insert, Facade (blk)		Appelez-nous	-
15	67002962		Facade, 5 Button (blk)		Appelez-nous	-
16	B8385403		Spring, Sports Fill-return	10	Appelez-nous	-
17	12665402B		Button, Sports Fill (blk)		Appelez-nous	-
18	WP12575501		Switch, Limit   (Replaces: 12575501)	10			$ 72.35
18	M0237945		Screw,hi/lo	10	Appelez-nous	-
19	67002263		Board, Better	10	Appelez-nous	-
20	WP67001130		Plug, Top Hinge Button (wht)   (Replaces: M0310729)	10		Immediately	$ 8.21
21	67006425		Screw, Sm   (Replaces: M0238616)	10		Immediately	$ 7.30
