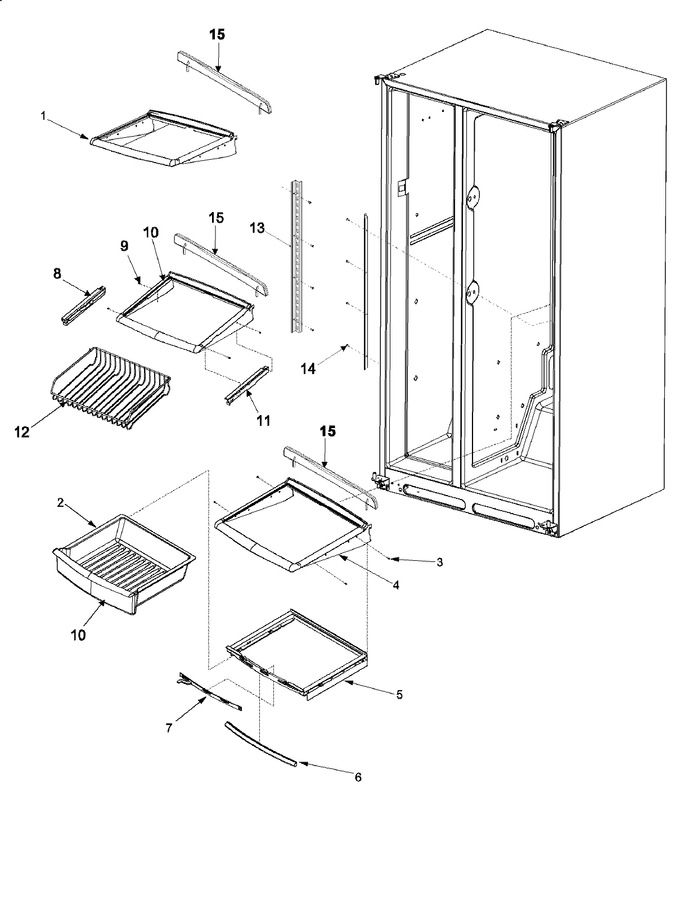

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	67002132		Shelf, Glide	10	Appelez-nous	-
2	67003359		Pan Sm Crisper	10	Appelez-nous	-
3	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.72
4	67003391		Shelf, Sta B/b 22	10	Appelez-nous	-
5	67002882		Frame, Sm Crisper	10	Appelez-nous	-
6	12589104		Seal, Sm Crisper Front	10	Appelez-nous	-
7	12562602U		Slide, Sm Crisper (blue)	10	Appelez-nous	-
8	12579602		Glide, Can Rack (lt)	10	Appelez-nous	-
9	W11233072		Screw   (Replaces: M0214931)	10		Immediately	$ 14.72
10	67002132		Shelf, Glide	10	Appelez-nous	-
11	12579601		Glide, Can Rack (rt)	10	Appelez-nous	-
12	12565901		Rack, Can	10	Appelez-nous	-
13	67001178		Ladder, Side	10	Appelez-nous	-
14	WP90767		Screw, Sm   (Replaces: M0211016)	10		Immediately	$ 8.25
15	67002897		Extension, Ref Shelf	10	Appelez-nous	-
