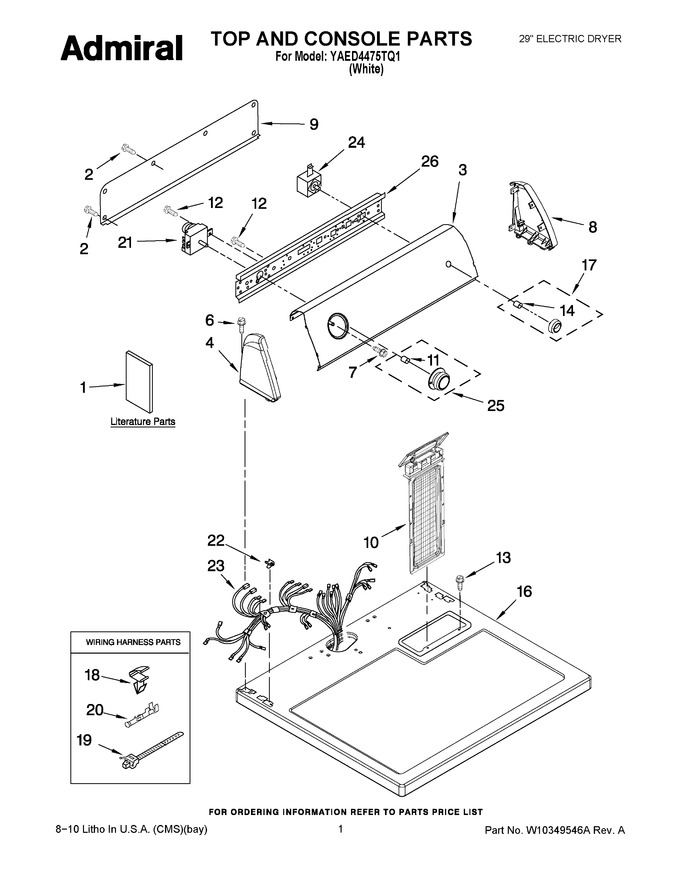

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10296135		Instructions, Installation		Appelez-nous	-
1	W10185977		Wiring Diagram		Appelez-nous	-
1	W10287575		Guide, Use & Care		Appelez-nous	-
2	WP693995		Screw, Hex Head   (Replaces: 693995)			Immediately	$ 6.80
3	W10141666		Panel, Control		Appelez-nous	-
4	8271365		Cap, End (l.h.)		Appelez-nous	-
6	WP388326		Screw, Console   (Replaces: 388326)				$ 8.36
7	3400859		Screw, Grounding   (Replaces: 8533951)				$ 12.49
8	8271359		Cap, End (r.h.)		Appelez-nous	-
9	W10103406		Panel, Rear Console   (Replaces: 8274261)				$ 121.78
10	W11778253		Screen, Lint   (Replaces: 8557857)			Immediately	$ 49.17
11	WP688805		Spring, Clip Knob   (Replaces: 688805)			Immediately	$ 7.38
12	WP90767		Screw,8-18 X 5/16   (Replaces: 8533971)			Immediately	$ 7.43
13	W11693756		Screw, 8-18 X 5/8   (Replaces: 688983)			Immediately	$ 13.28
14	WP8536939		Clip Spring   (Replaces: 8536939)			Immediately	$ 7.38
16	8557930		Top		Appelez-nous	-
17	8538959		Knob, Push-to-start				$ 25.38
18	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.36
19	3391249		Tie, Cable		Appelez-nous	-
20	WP94614		Terminal   (Replaces: 94614)				$ 7.25
21	WPW10185972		Timer, 60 Hz.   (Replaces: W10185972)			Immediately	$ 127.67
22	WP357213		Nut, Push-in   (Replaces: 357213)				$ 6.98
23	W10186165		Harness, Wiring		Appelez-nous	-
24	WP3977456		Switch, Push-to-start   (Replaces: 3977456)			Immediately	$ 23.99
25	WP8557455		Timer Knob Assembly   (Replaces: 8538953)				$ 53.65
26	8271418		Bracket, Control				$ 57.15
