SELECT A DIAGRAM

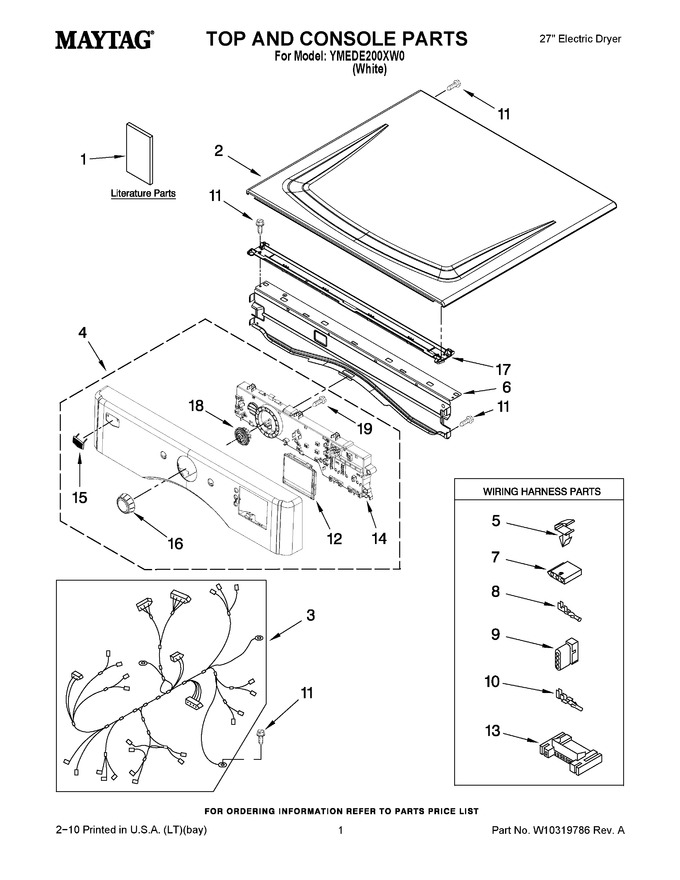

01 - Top And Console Parts


02 - Cabinet Parts


03 - Bulkhead Parts


04 - Door Parts


05 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	W10240878		Use & Care Guide		Appelez-nous	-
1	W10286854		Tech Sheet		Appelez-nous	-
1	W10240584		Installatiion, Instruction		Appelez-nous	-
2	WPW10336080		Top   (Replaces: 8563730)				$ 298.79
3	W10251444		Harness, Main				$ 69.11
4	WPW10247268		Panel, Console (includes Illus.15.)   (Replaces: W10247268)				$ 452.69
5	WP3394427		Clip-harness   (Replaces: 3394427)				$ 7.36
6	WP8565237		Bracket, Console   (Replaces: 8565237)				$ 170.79
7	353424		Connector Sensor				$ 18.95
8	WP94614		Terminal   (Replaces: 94614)				$ 7.25
9	3936144		Plug, Terminal				$ 19.10
10	94613		Terminal		Appelez-nous	-
11	WP488729		Screw, 8-18 X 1/2   (Replaces: 3390647)			Immediately	$ 7.45
12	W10215794		Window, Console Display				$ 46.71
13	3395683		Connector, Motor			Immediately	$ 49.01
14	W10253073		Assembly, User Interface				$ 262.26
15	W10732500		Badge   (Replaces: W10177245)				$ 40.89
16	W11676494		Knob, Assembly   (Replaces: W10215799)				$ 55.05
17	WPW10266747		Channel, Water   (Replaces: W10266747)				$ 66.56
18	W10215797		Guide, Assembly Cycle Light		Appelez-nous	-
19	W10006580		Screw, M3-12 X 12		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
