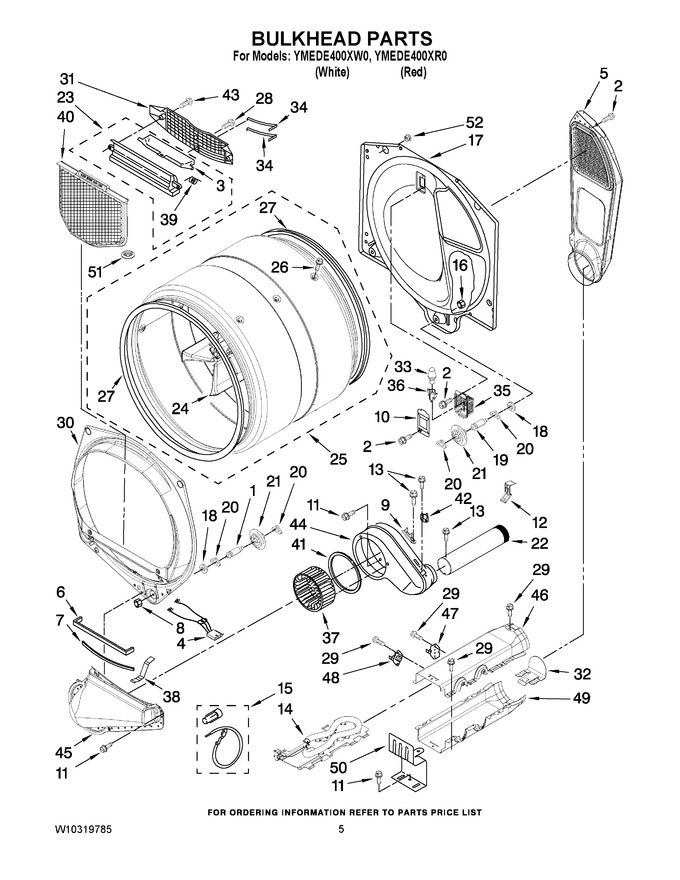

03 - Bulkhead Parts
04 - Door Parts
05 - Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10359271 | Shaft, R.h. Thread (Replaces: 8575324) |
|
Immediately | $ 55.99 | ||||
| 2 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 3390647) |
|
Immediately | $ 7.45 | ||||
| 3 | W11222846 | Door, Lint Screen (Replaces: W10153413) |
|
Immediately | $ 192.52 | ||||
| 4 | WP3406653 | Harness, Sensor (Replaces: 3406653) |
|
Immediately | $ 143.60 | ||||
| 5 | WP3387911 | Air Duct Assembly (Replaces: 697354) |
|
$ 294.58 | |||||
| 6 | WP697813 | Seal, Outlet Housing (Replaces: 697813) |
|
Immediately | $ 7.53 | ||||
| 7 | WP697813 | Seal, Drum Front (Replaces: 697814) |
|
Immediately | $ 7.53 | ||||
| 8 | W11812294 | Nut,3/8 X 16 (r.h.) (Replaces: 3934666) |
|
$ 11.49 | |||||
| 9 | WP3392519 | Thermal Fuse (91° C) (Replaces: 3392519) |
|
Immediately | $ 22.46 | ||||
| 10 | W11226088 | Lens, Drum Light (Replaces: 3402841) |
|
$ 29.38 | |||||
| 11 | WP489463 | Screw, 8-18 X 5/8 (Replaces: 489463) |
|
$ 7.43 | |||||
| 12 | W11684573 | Clip, Exhaust Pipe (Replaces: 8572105) |
|
$ 7.35 | |||||
| 13 | WP90767 | Screw,8-18 X 5/16 (Replaces: 8533971) |
|
Immediately | $ 7.43 | ||||
| 14 | WP8544771 | Heater Element (Replaces: 8544771) |
|
Immediately | $ 122.94 | ||||
| 15 | 279457 | Terminal Wire Kit (for Heater Element Wiring Harness Repair) |
|
Immediately | $ 7.13 | ||||
| 16 | WPW10080190 | Nut, 3/8-16 (l.h.) (Replaces: W10001120) |
|
Immediately | $ 9.01 | ||||
| 17 | W11299301 | Bulkhead, Rear (Replaces: 8520836) |
|
$ 234.13 | |||||
| 18 | W11236646 | Washer-support (Replaces: 3387459) |
|
Immediately | $ 13.26 | ||||
| 19 | WPW10359272 | Shaft, L.h. Thread (Replaces: 8575325) |
|
Immediately | $ 52.63 | ||||
| 20 | WPW10512946 | Ring Tri (Replaces: 690997) |
|
Immediately | $ 8.71 | ||||
| 21 | WPW10314173 | Roller, Support (Replaces: 8536973) |
|
Immediately | $ 25.65 | ||||
| 22 | 279936 | Exhaust Pipe (Replaces: 8066224) |
|
$ 138.76 | |||||
| 23 | W11219327 | Housing, Outlet Assembly (Replaces: W10153423) |
|
$ 85.56 | |||||
| 24 | W11782150 | Baffle, Drum (Replaces: 697693) |
|
Immediately | $ 86.01 | ||||
| 25 | W10545923 | Complete Drum Assembly (Replaces: W10181467) |
|
$ 412.74 | |||||
| 26 | W10853898 | Screw, 8-16 X 1/2 (Replaces: W10219342) |
|
Immediately | $ 7.36 | ||||
| 27 | 280114 | Seal, Drum (Replaces: W10166807) |
|
Immediately | $ 63.74 | ||||
| 28 | WP488729 | Screw, 8-18 X 1/2 (Replaces: 695240) |
|
Immediately | $ 7.45 | ||||
| 29 | WP693995 | Screw (Replaces: 693995) |
|
Immediately | $ 6.80 | ||||
| 30 | W10252304 | Bulkhead, Front |
|
$ 187.98 | |||||
| 31 | W11086603 | Grille, Outlet (Replaces: W10153412) |
|
Immediately | $ 33.21 | ||||
| 32 | 8544776 | Flange, Heater Box |
|
$ 17.11 | |||||
| 33 | WP22002263 | Bulb, Light (Replaces: 3406124) |
|
Immediately | $ 13.37 | ||||
| 34 | WP3387223 | Electrode (sensor) (Replaces: 3387223) |
|
Immediately | $ 6.25 | ||||
| 35 | 8578825 | Bracket,drum Light |
|
$ 19.73 | |||||
| 36 | W11222979 | Socket Assembly (Replaces: W10214261) |
|
Immediately | $ 106.91 | ||||
| 37 | WP697772 | Wheel, Blower (Replaces: 697772) |
|
Immediately | $ 73.78 | ||||
| 38 | WP8066208 | Clip Spring (Replaces: 8066208) |
|
$ 7.95 | |||||
| 39 | WP3394986 | Spring, Lint Screen Door (Replaces: 3394986) |
|
$ 84.12 | |||||
| 40 | W10120998 | Lint, Screen (Replaces: W10049370) |
|
$ 74.66 | |||||
| 41 | WP697770 | Seal, Cover Plate (Replaces: 697770) |
|
Immediately | $ 7.44 | ||||
| 42 | WP8577274 | Thermistor (Replaces: 8577274) |
|
Immediately | $ 39.25 | ||||
| 43 | WP3387230 | Screw, 10-16 X 1 (Replaces: 3387230) |
|
Immediately | $ 7.69 | ||||
| 44 | W10888146 | Housing, Blower (Replaces: 8544362) |
|
$ 96.11 | |||||
| 45 | WPW10128606 | Lint Duct Assembly (Replaces: 8066168) |
|
$ 195.73 | |||||
| 46 | WP8544769 | Housing, Slot Heater Box (Replaces: 8544769) |
|
$ 156.51 | |||||
| 47 | 279973 | Thermal Cut-off (include, Item. 48 ) (Replaces: 8318314) |
|
Immediately | $ 68.04 | ||||
| 48 | WP3391914 | Thermostat 295 F 215°c) High Limit (Replaces: 3391914) |
|
Immediately | $ 107.52 | ||||
| 49 | 8544770 | Housing, Tab Heater Box |
|
$ 75.92 | |||||
| 50 | 8066099 | Bracket, Heater Box |
|
$ 24.13 | |||||
| 51 | W10665050 | Caplug (Replaces: W10128544) |
|
$ 18.14 | |||||
| 52 | 8529007 | Plug, Bulkhead |
|
$ 70.98 |
