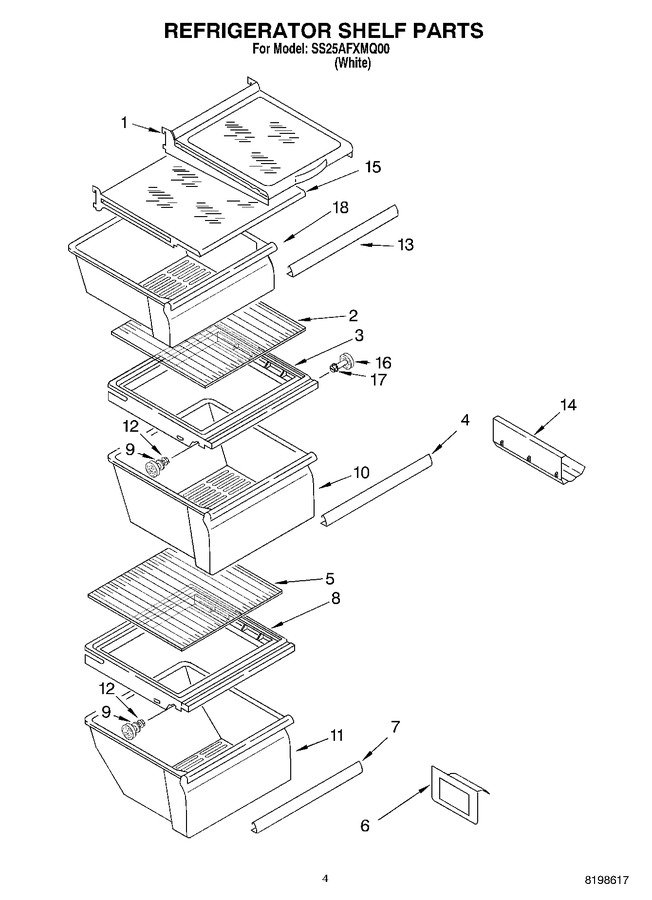

03 - Refrigerator Shelf Parts


04 - Freezer Liner Parts


05 - Motor And Ice Container Parts


06 - Refrigerator Door Parts


07 - Freezer Door Parts


08 - Dispenser Front Parts


09 - Unit Parts


10 - Air Flow Parts


11 - Control Parts


12 - Icemaker Parts, Parts Not Illustrated


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2188695		Shelf, Cantilever (2)				$ 119.00
2	W10864399		Glass, Cover   (Replaces: 2174150)				$ 208.83
3	W10508993		Cover, Crisper   (Replaces: 2209698)				$ 275.27
4	2194905		Trim, Pan		Appelez-nous	-
5	W10864399		Glass, Cover   (Replaces: 2179259)				$ 208.83
6	2179350		Deflector				$ 77.30
7	WP2179234		Trim, Meat Pan   (Replaces: 2194906)				$ 79.71
8	2217039		Cover, Meat Pan		Appelez-nous	-
9	W11223328		Stud Assembly   (Replaces: 2196485)			Immediately	$ 13.29
10	WP2188661		Crisper Pan   (Replaces: 2188653)			Immediately	$ 176.82
11	WP2188664		Meat Pan   (Replaces: 2188654)			Immediately	$ 83.43
12	WP3-24004-109		Screw   (Replaces: 3400894)				$ 8.23
13	WP2179243		Trim, Snack Pan   (Replaces: 2179243)				$ 98.69
14	W10777924		Rack, Wine & Egg   (Replaces: 2179404)				$ 22.30
15	2206347		Shelf, Snack Bin		Appelez-nous	-
16	WP2196483		Stud Assembly   (Replaces: 2196483)				$ 9.78
17	WP3400806		Screw   (Replaces: 8281158)				$ 7.29
18	W11497323		Snack Bin   (Replaces: 2188655)				$ 211.36
