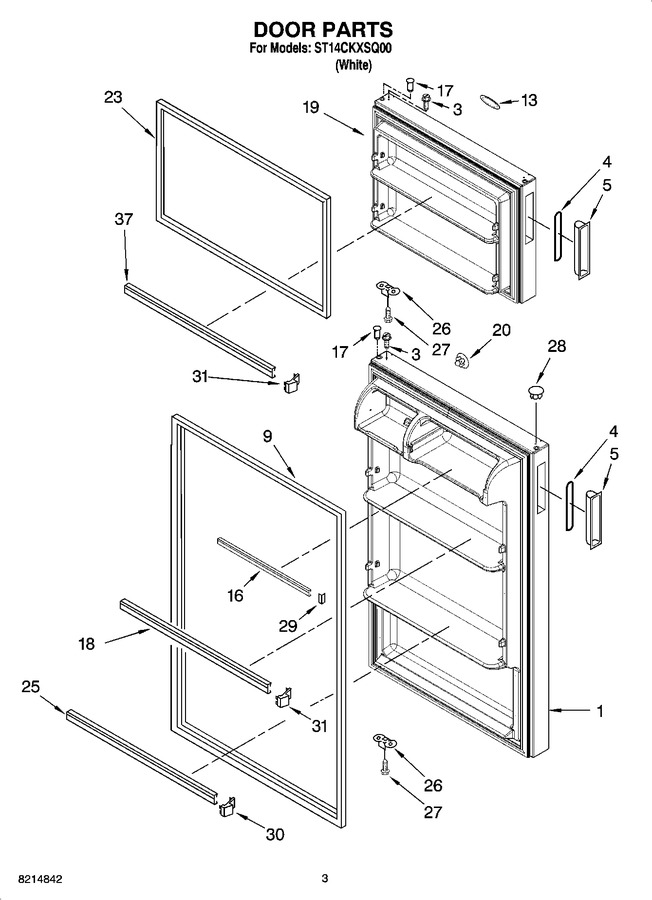

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2316197W | Refrigerator Door Includes Item 9 Order Item 11) |
|
$ 609.89 | |||||
| 3 | WP8281206 | Screw (Replaces: 8281206) |
|
$ 7.53 | |||||
| 4 | 2222107 | Gasket, Handle |
|
- | |||||
| 5 | WP984493 | Handle (Replaces: 984493) |
|
$ 103.04 | |||||
| 9 | WP2319265T | Door Gasket, Magnetic (Replaces: 2264506) |
|
Immediately | $ 210.38 | ||||
| 13 | 2204652 | Nameplate |
|
- | |||||
| 16 | W11129820 | Trim, Door Shelf (upper) (Replaces: 2264785) |
|
Immediately | $ 114.61 | ||||
| 17 | WP2183003 | Thimble (Replaces: 2262054) |
|
$ 7.33 | |||||
| 18 | WP2266727 | Trim, Door (middle) (Replaces: 2263260) |
|
Immediately | $ 108.51 | ||||
| 19 | 2316196W | Freezer Door Includes Item 23 |
|
$ 545.55 | |||||
| 20 | WP2189000 | Hole Plug (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 23 | WP2319263T | Door Gasket, Magnetic (Replaces: 2263257) |
|
Immediately | $ 194.27 | ||||
| 25 | WP2266738 | Trim, Door Shelf (lower) (Replaces: 2263259) |
|
$ 100.52 | |||||
| 26 | 2217944 | Bracket, Door Stop |
|
$ 26.55 | |||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 28 | WP2212648 | Hole Plug (Replaces: 2212648) |
|
Immediately | $ 7.37 | ||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.23 | ||||
| 30 | WP2195916K | Plug, Trim (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 31 | WP2156003 | Endcap, Trim (Replaces: 2156003) |
|
Immediately | $ 11.93 | ||||
| 37 | WP2266727 | Trim-door (2) (Replaces: 2263260) |
|
Immediately | $ 108.51 |
