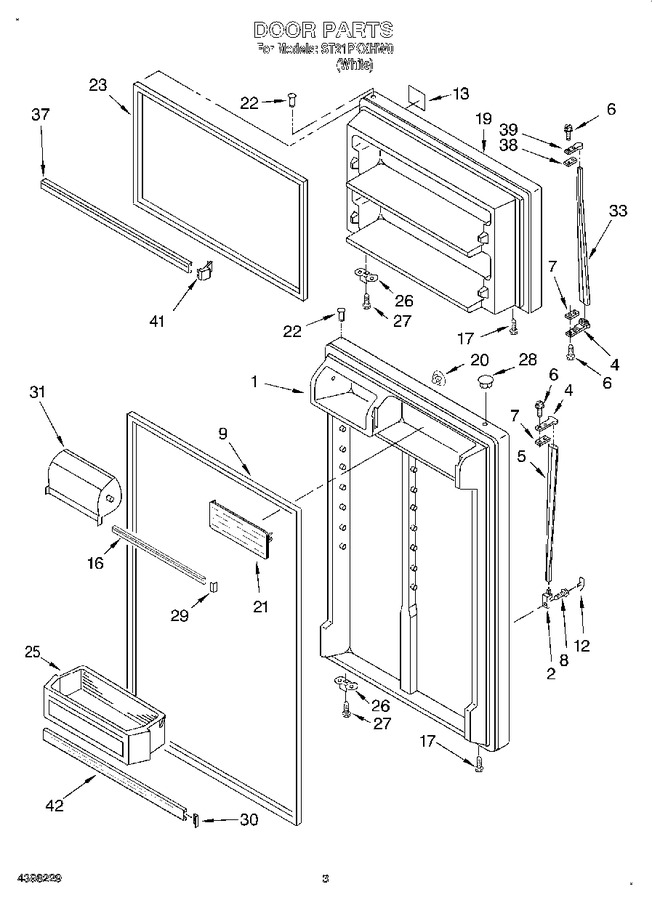

02 - Door
03 - Liner
04 - Unit
05 - Shelf, Optional
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11023679 | Refrigerator Door (includes No.9 & No.22) (Replaces: 2183920) |
|
$ 682.52 | |||||
| 2 | 819342 | End Cap (Replaces: 2183141) |
|
Immediately | $ 46.18 | ||||
| 4 | 819342 | End Cap, Handle (Replaces: 9791771) |
|
Immediately | $ 46.18 | ||||
| 5 | WP2162555 | Handle, Center (Replaces: 2148035) |
|
Immediately | $ 141.86 | ||||
| 6 | WP488920 | Screw (Replaces: 489006) |
|
$ 7.18 | |||||
| 7 | 943188 | Spacer |
|
$ 7.80 | |||||
| 8 | WP488729 | Screw (Replaces: 487909) |
|
Immediately | $ 7.45 | ||||
| 9 | 2159061 | Door Gasket, Magnetic (mist Beige) |
|
Immediately | $ 165.30 | ||||
| 12 | 9791769 | Cover, Screw |
|
$ 5.70 | |||||
| 13 | 2204652 | Nameplate |
|
- | |||||
| 16 | WP2201061 | Trim, Door Shelf (Replaces: 2195378) |
|
$ 111.89 | |||||
| 17 | WP8281206 | Screw (Replaces: 489028) |
|
$ 7.53 | |||||
| 19 | W11023679 | Freezer Door (includes No. 22 & No. 23) (Replaces: 2182489) |
|
$ 682.52 | |||||
| 20 | WP2189000 | Hole Plug (Replaces: 2189000) |
|
Immediately | $ 6.99 | ||||
| 21 | WP2188236 | Shelf, Flip-up (Replaces: 2159304) |
|
$ 57.94 | |||||
| 22 | WP2183003 | Thimble (Replaces: 2183003) |
|
$ 7.33 | |||||
| 23 | 2159060 | Door Gasket, Magnetic (mist Beige) |
|
$ 302.41 | |||||
| 25 | WP2204812 | Bin, Door Shelf (Replaces: 2195395) |
|
$ 72.41 | |||||
| 26 | W11745278 | Bracket, Door Stop (2) (Replaces: 2189202) |
|
Immediately | $ 12.03 | ||||
| 27 | WP488921 | Screw (Replaces: 488921) |
|
Immediately | $ 7.42 | ||||
| 28 | WP2212648 | Hole Plug (Replaces: 844478) |
|
Immediately | $ 7.37 | ||||
| 29 | WP2156007 | Plug, Trim (Replaces: 2156007) |
|
Immediately | $ 7.23 | ||||
| 30 | WP2156006 | Plug-trim (Replaces: 2156006) |
|
Immediately | $ 11.51 | ||||
| 31 | WP2218118 | Compartment Door (Replaces: 2177130) |
|
$ 73.73 | |||||
| 33 | WP2162555 | Handle, F.c. (Replaces: 2171043) |
|
Immediately | $ 141.86 | ||||
| 37 | 2195947 | Trim-door (2) |
|
$ 50.94 | |||||
| 38 | 943187 | Shim |
|
$ 25.14 | |||||
| 39 | 819342 | Endcap (Replaces: 9791776) |
|
Immediately | $ 46.18 | ||||
| 41 | WP2195916K | Endcap (4) (Replaces: 2195916) |
|
Immediately | $ 11.86 | ||||
| 42 | WPW10421486 | Trim, Door (Replaces: 2195948) |
|
$ 103.27 | |||||
| 100 | 2199047 | Featurepak (includes 16, 25, 29, 30, 31, 37, 41, 42) Also See Shelf Parts Page. |
|
- |
