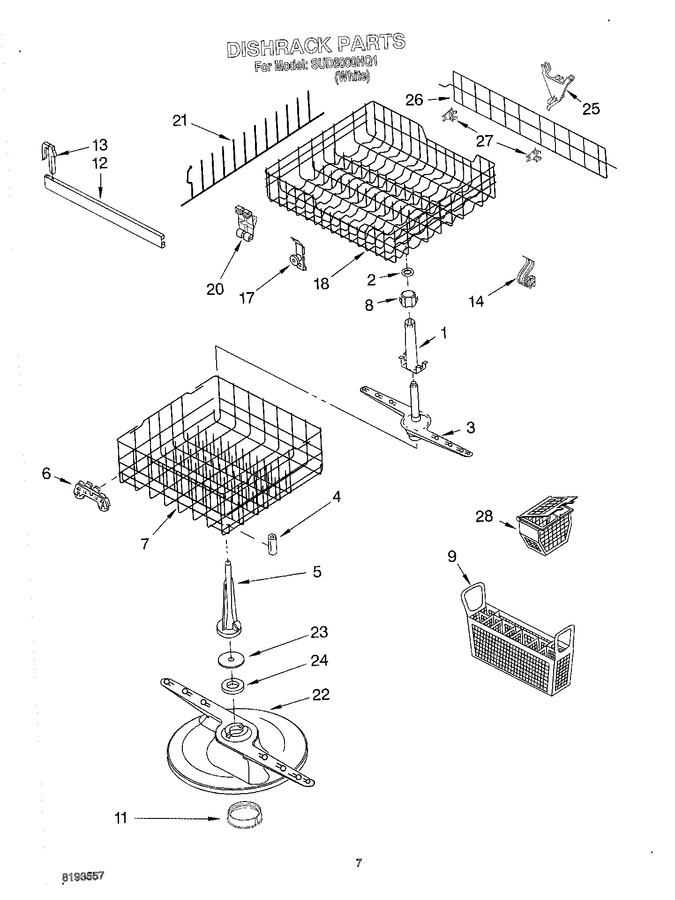

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8268838		Support, Arm (also Order Items 2 & 8)		Appelez-nous	-
2	303722		Clip				$ 5.75
3	8268829		Spray Arm, Upper (also Order Item 8)				$ 42.16
4	WP3385142		Bumper (2)   (Replaces: 8268863)				$ 85.34
5	8268862		Tower, Pressure				$ 72.62
6	WP8268645		Wheel & Transport Assembly (4)   (Replaces: 8268820)			Immediately	$ 58.87
7	W10311986		Dishrack, Lower (includes Items 4 & 6)   (Replaces: 8519579)			Immediately	$ 195.22
8	8268871		Support Lock, Spray Arm				$ 5.65
9	WP8268866		Basket, Silverware   (Replaces: 8268866)			Immediately	$ 79.54
11	WP3376846		Seal, Lower Sprayarm   (Replaces: 3376846)			Immediately	$ 9.11
12	WP3385089		Track   (Replaces: 3385089)			Immediately	$ 75.60
13	3379941		Stop, Track (4)				$ 42.08
14	8268815		Clip, No Flip				$ 23.69
17	WPW10204131		Wheel Assembly (3 Pos.)   (Replaces: 8268848)			Immediately	$ 8.92
18	W11169039		Dishrack, Upper   (Replaces: 8519572)			Immediately	$ 199.05
20	8268522		Retainer, Tine Row				$ 5.51
21	W10728160		Tinerow, Folding   (Replaces: 8274963)			Immediately	$ 50.40
22	WP8268874		Sprayarm, Lower   (Replaces: 8268874)				$ 114.59
23	3367910		Cap, Nozzle				$ 39.70
24	719576		Bearing, Nozzle				$ 7.48
25	WP8268523		Pivot, Folddown   (Replaces: 8268523)				$ 83.21
26	WP8268828		Cupshelf   (Replaces: 8268828)				$ 122.30
27	8268826		Clip, Cupshelf (2)				$ 19.95
28	8519543		Basket Assembly Small Items		Appelez-nous	-
